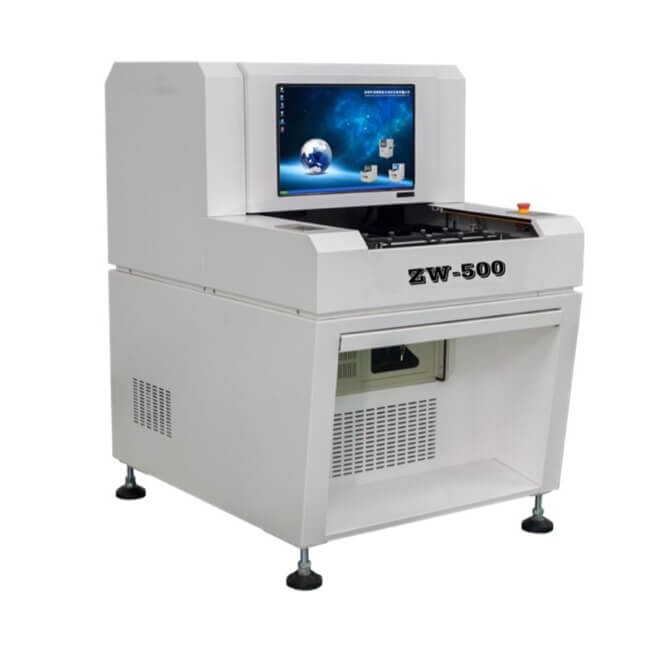

Offline AOI Inspection Machine ZW 500

Dimension:900*1100*1350 mm
PCB width:30x30-450x330mm
Inspection Component: 0402 chip
Weight:Aprox. 450kg

Offline AOI Inspection Machine ZW 500

Specifications:

Offline AOI Inspection Machine ZW 500

The vector analysis algorithm and the multiple detection algorithms are combined to achieve the best detection side capability.

The full version matches multiple pieces of detection at any position.

Smart camera barcode recognition system (identifying 1D code and 2D code).

Multi-line monitoring system, all production line production status is clear at a glance.

The remote programming and debugging control functions are used together, and the software control performance is stronger.

Multifunctional high precision new algorithm new interface

Custom IPE separately assigns light sources based on current components

Users can customize the image source with simple expressions, and different algorithms can combine different effects, which can greatly improve the detection rate and reduce the false positive rate. The image source in the Qubit AOI system can understand the dot matrix of pixels. Each pixel is represented by data from 1 to 4 channels. The IPE expression can independently calculate each pixel in the image source to generate a new image.

Full-page detection.

Multi-piece detection function for any position of the entire PCB.

More intuitive and fast NG OK image.

The programming interface of the introduction, regardless of the PCB size, the PCB is in the visible range.

Imported servo control system

All major components are made of internationally renowned brands, with high service life and low failure rate under the premise of ensuring the running stability and motion accuracy of the equipment.

With high color reproduction effect, combined with high-resolution and high-definition optical telecentric lens, the product has high discrimination and high-definition image, providing high-definition image output for AOI equipment.

ategory

project

Specifications

Optical system

Camera

5 million Gigabit network color high speed camera

Resolution

10/15/20 micron/dot (optional) comes standard with 15 micron/point (corresponding to FOV: 36mm*30mm)

Optical lens

5.0M pixel telecentric lens, depth of field: 8mm - 10mm

Light source system

RGB ring multi-angle LED structure light source

Light source control system

Digital constant current controller

Image processing speed

FOV processing speed

<170 milliseconds

Movement speed

Up to 700 milliseconds

Detection speed

3500 square millimeters / second

Characteristics

IPE is an abbreviation of Image Processing Expression, which allows users to customize the image source with simple expressions. Different algorithms can combine different effects, which can greatly improve the detection rate and reduce the false positive rate. The image source in the Qubit AOI system can understand the dot matrix of pixels. Each pixel is represented by data from 1 to 4 channels. The IPE expression can independently calculate each pixel in the image source to generate a new image. Can detect multiple pieces anywhere in the class

operating

Graphical offline programming and debugging, accurate automatic positioning of micron, fast process, support for remote offline debugging, does not affect the normal test of equipment

Mark

Points

2 common Mark points can be selected to automatically correct the horizontal Mark

Test content

Solder paste printing

Skew, Wuxi, Shaoxi, Duoxi, Open circuit, pollution, bridging

Patch

Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, breakage, pollution, bridging, multiple pieces of IC bending foot

After reflow soldering

Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, broken, pollution, Wuxi, Shaoxi, multi-tin, fake welding, solder ball IC bending position any position

After wave soldering

Insert needle, Wuxi, Shaoxi, Duoxi, fake solder, tin bead, tin hole, short circuit, multiple pieces in any position

Red rubber board

Missing parts, offset, skew, tombstone, side stand, flip, polarity reverse, wrong piece, broken, Yijiao, multiple pieces in any position

PCB size

30 × 30 mm ~ 450 × 330 mm (can be customized according to customer requirements)

P CB thickness

0.3 mm to 6 mm

PCB warpage

≤6 mm (with fixture-assisted correction) to eliminate the effects of PCB deformation (special requirements can be customized)

Part height

The net height of ≤35mm is ≤70mm (special requirements can be customized)

Minimum part

01005 components, 0.3 mm pitch and above IC

X, Y platform

Drive device

AC servo motor system

Precise positioning

≤8 microns

Y marble platform

Precise positioning

≤6 microns

Control System

operating system

Windows8-64Bit

Computer host

I5 CPU, 8G, GPU graphics, 16G RAM, 128G solid state drive, 1TB mechanical hard drive

monitor

22-inch LCD widescreen display

Other parameters

Mechanical dimensions

90 cm × 110 cm × 135 cm (height with feet)

weight

About 450 kg

power supply

AC 220 volts ± 10%, frequency 50/60HZ, rated power 600W
