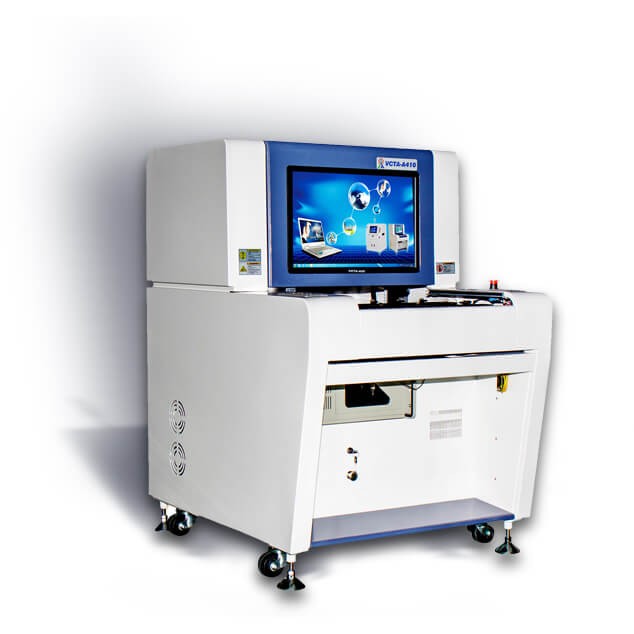

SMT AOI Machine Offline A410

Dimension:870*1040*1300 mm
Max PCB Size:330x480mm
Inspection Component: 0201 chip
Weight:Aprox. 360kg

SMT AOI Machine Offline A410

Specifications:

SMT AOI Machine Offline A410

Easy to operate and multi-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, check component defects before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.

Multi-algorithms and techniques

Novel structure and tight security;

Simple programming and debug mode, easy to operate;

Automatically identify PCB, and automatically identify if the board is put on 180° reverse side;

Simultaneous inspection for multi-boards and inspection shift of 2 sides of board (components top and bottom) improves the inspection efficiency;

Smart camera barcodes identify system. (The camera can identify single-dimensional barcode and data matrix barcode);

Professional SPC analysis system, monitoring and analysis the quality of products in real time;

Multiple machine monitoring system, can know well of all production lines’ condition;

Remote programming and debugging make the software is more easy and convent.

Simple test results report

The test report contains some contents of SPC, according to the real test case shows the ratio of NG and distribution, real-time show the quantity of the testing boards 、parts per million 、false-positive rate and other relevant information, so the operator is easy to know the detail of the production line.

Inspection Object

Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /
Cold joint / insufficient solder / Excess solder

Inspection Component

0201 chip , IC pin(0.3mm pitch), wave solder

Inspection Method

Full color image statistic analysis, OCP, IC bridge analysis, color linear analysis color non-linear analysis, similarity analysis, black-white ratio analysis, intensity analysis

Camera

Color CCD (1.45MPa Pixels), Resolution 20um, FOV 20*20mm (customized), speed:2000mm²/s

Light Source

RGB Ring Multi-angle LED combination lighting, high brightness, standard CCTV lens, DOV 2mm

Computer

CPU: Dual-core 2.7G, RAM: DDRIII-2G hard disk : 120G, 22" wide screen LCD

PCB Thickness

0.3 - 5.0 (PCB Warpage < 5mm)

PCB Width

25x25-330x480mm (can be customized)

Driving Method

AC Servo Motor+ball screw rod+linear guide rail

Motion Speed

Max 700mm/s

PCB Clamp

Automatic

Power

AC220V / 50Hz, UPS 1000W

Dimension

870*1040*1300 mm

Weight

Aprox. 360kg
