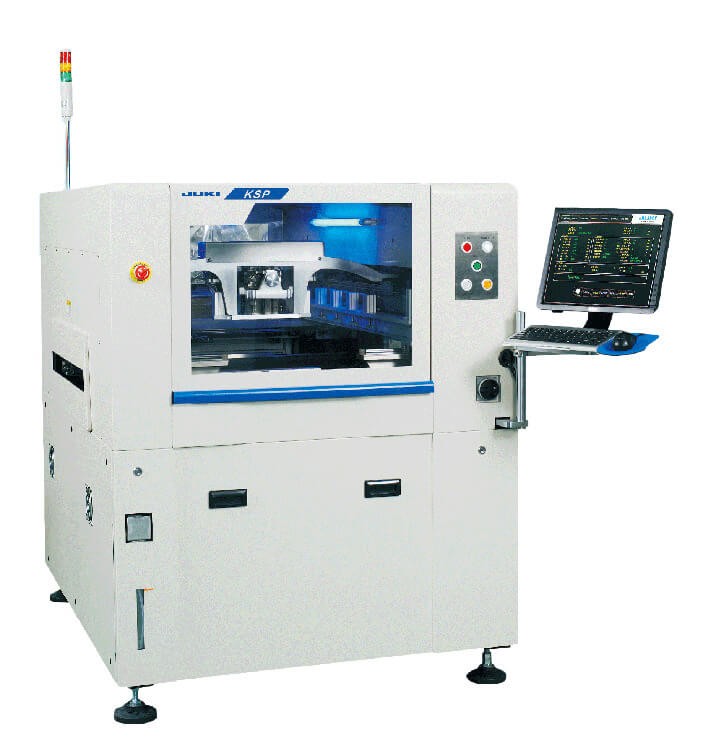

JUKI SMT Stencil Printer KSP

Frame size:737 mm x 737 mm
Board size:510mm x 510mm
Dimension:W1,206mm x D1,684mm x H1,410mm

JUKI SMT Stencil Printer KSP


JUKI SMT Stencil Printer KSP

Single Stage Conveyor with U-Shape Belt

Arch Shape Squeegee Beam

SPM(Stencil Position Memory) System

 Automatic Stencil Wiper System

Adjustable Stencil X Frame Mechanism

Vision and Optics System


Solder Paste Printer

Model name


PCB size

50mm x 50mm - 510mm x 510mm

Cycle time

8.5 sec + Printing time

Positioning accuracy

±12.5μm (6σ)

Frame size

480mm x 500 mm ~ 737 mm x 737 mm

Power supply

AC220V*1 , 0.49MPa , single-phase


W1,206mm x D1,684mm x H1,410mm




JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
