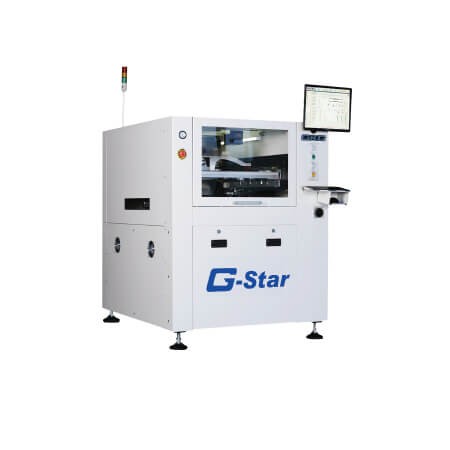

GKG G-STAR SMT Stencil Printer

Max PCB: 400 mm x340 mm
Smallest component:01005
size: 1158mm (L) x 1362mm (W) x 1463mm (H)
Weight:1000Kg

GKG G-STAR SMT Stencil Printer

Specifications:

GKG G-STAR SMT Stencil Printer

GKG G-STAR Full Automatic Solder paste Printer, Max PCB: 400 mm x340 mm,Smallest component:01005,PCB Max Weight:3 kg,size: 1158mm (L) x 1362mm (W) x 1463mm (H)

Above & beyond your expectations

Handling M Size board, G-Star is adept at delivering all your business needs. It successfully attained 01005 miniature printing. Through full contact with the stencil, our improved cleaning system ensures that any remaining paste in the mesh will be eliminated before printing. The 2D paste inspection function is able to detect insufficient paste, bridging and other defects. G-Star is also equipped with top and motorized side clamp, thereby ensuring superior printing quality.

Machine Alignment Capability

2Cmk @ ±12.5 microns 6 sigma

Process Alignment Capability

2Cpk @ ±25 microns 6 sigma

Core Cycle Time

< 8.5 secs

(excluding printing & cleaning time)

Product Changeover Time

< 3 mins

New Product Set-up Time

< 10 mins

Max. Size (L x W)

400 mm x 340 mm

Min. Size (L x W)

50 mm x 50 mm

Thickness

0.4~6 mm

PCB Thickness Adjustment

Manual (Auto is option. PCB max. width reduced to 310 mm)

PCB Max. Weight

3 kg

PCB Edge Clearance

3 mm

PCB Bottom Clearance

15 mm (7 mm with optional auto

PCB thickness adjustment)

PCB Warpage

Max. 1% diagonally

Clamping Method

Top clamp (manual) and motorized side clamp

Support Method

Magnetic support pins, bars, blocks, Vacuum suction

Conveyor Direction

L to R, R to L, R to R, L to L (software control)

Conveyor Height

900 ± 40 mm

Conveyor Speed

Max. 1,500 mm/s

Conveyor Width Adjustment

Automatic

Hardware

LCD Monitor, Mouse & Keyboard

Operating System (OS)

Windows 7 or Higher

Control Method

Industrial PC controlled

I/O Interface

SMEMA Standard

Stencil Frame Size (L X W)

Adjustable, 470 mm x 370 mm to 737 mm x 737 mm

Print Gap (snap-off)

0~20 mm

Printing Table Adjustment Range

X: ±3 mm, Y: ±7 mm : ± 2°

Print Speed

6~200 mm/s

Squeegee Pressure

0.5~10kg (program control)

Squeegee Type

Std.: Metal , Option: OPC, rubber

Squeegee Angle

Std. 60°, Option 45°, 50°, 55°

Cleaning System

Auto wet, dry, vacuum (software select)

Field-of-View (FOV)

8 mm x 6 mm

Fiducial Types

Circle, triangle, square, diamond, cross

Fiducial size

0.5~3.0 mm

Vision Methodology

CCD camera look up & down

2D inspection

Max.100 windows to inspect missing &

insufficient (std.)

Power Supply

AC220V ± 10% 50/60Hz

Power Consumption

2.5kW

Air Supply

4 ~ 6Kgf/cm²

Dimension (excluding signal tower)

1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H)

Machine Weight

1,000kg
