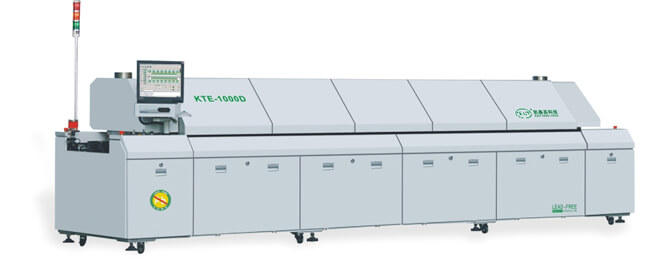

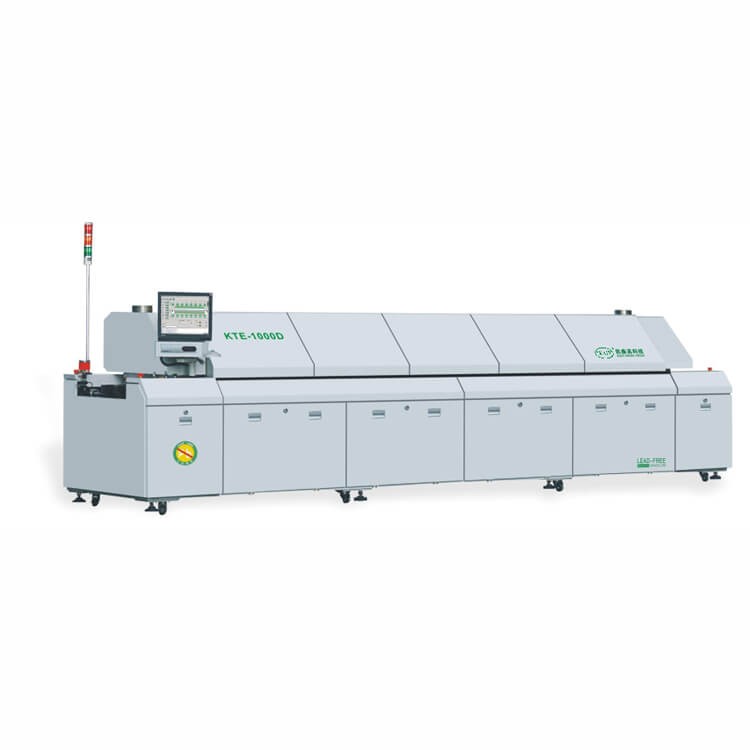

Dual Rail SMT Reflow Oven KTE-1000D

Dual Rail Conveyor
10 heating zones
Dimension 6160x1539x1490mm
Weight APPROX:3050KG

Dual Rail SMT Reflow Oven KTE-1000D

Specifications:


Dual Rail SMT Reflow Oven KTE-1000D

Advantage:

1. Totally meet various requirements for the lead free processing.

2. WindowsXP operation system, Chinese/English can be swtiched online.

3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%

Model

KTE-1000D

Control

Industrial computer

Heating zones qty.

Top 10, bottom 10

Cooling zones qty.

Top 2

Heating zone length

3892mm

Current plate structure

Galvanized plate

Weight

APPROX:3050KG

Dimension

6160x1539x1490mm

Exhaust capacity

10/min×2

Color

Grey

Control system

Electricity supply

3P 380V/220V 50/60HZ

Temp. control range

Room temp.300℃

Total power

86KW

Temp. control accuracy

±1℃static state

Start power

38KW

Temp. control method

PID +SSR drive

Consumption power

12KW

PCB temperature deviation

±1.5℃

Speed control

Inverter adjust

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 Sectional structure

Rail fixed method

1,4 fix 2,3 moving

Chain

Stuck-free type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Mesh+ chain

Component height

Top/bottom 25mm

Conveying speed

300-2000mm

Conveying direction

Left to right

Lubrication

Automatic

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 10,bottom 103892mmcan meet the need of the peak lead-free technique.

Cooling zones

After cool down by air, PCB temp. is ≤70℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Empty to full load heat balance respond time

≤20 s
