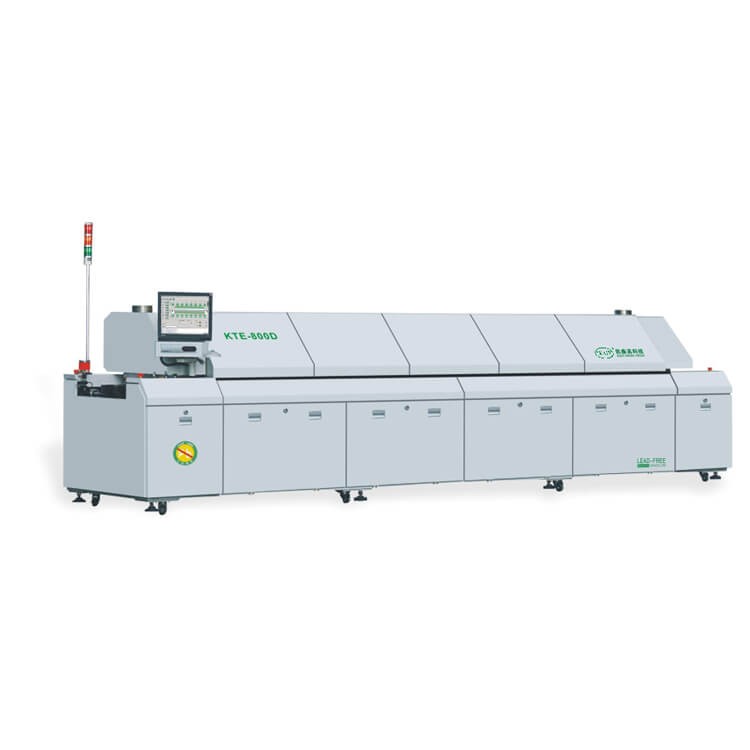

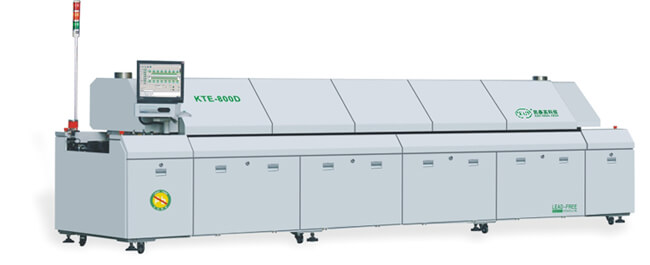

Dual Rail Conveyor
8 heating zones
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.
Heating zones qty.
Top 8, bottom 8
Cooling zones qty.
Heating zone length
3P 380V/220V 50/60HZ
Temp. control range
Temp. control accuracy
Temp. control method
PID +SSR drive
PCB temperature deviation
All profiles can be saved
Warm up time
High, low temp. alarm
2 sectional rails
Rail fixed method
1,4 fix, 2,3 moving
PCB Max. width
Rail+ mesh+ chain
Left to right
Forced air cooling
Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique.
After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time
From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence
Warm up from two side, save the power and time
Profile transfer time
Heating zone temp. control accuracy
PCB temp. deviation
Empty to full load heat balance respond time
