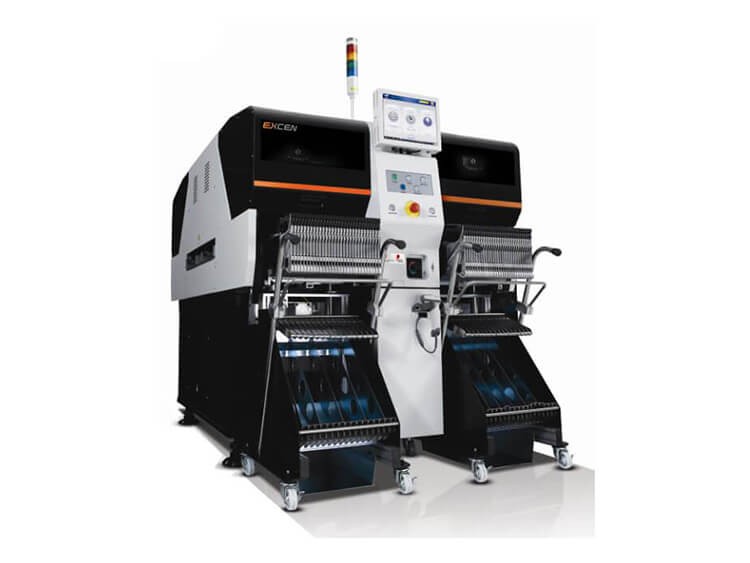

Samsung EXCEN PRO Pick and Place Machine

High Speed:120,000 CPH
Ultra Slim Design with a Total Length of 1.25m
Applies High Rotary Modular Head
Side-view Vision System

Samsung EXCEN PRO Pick and Place Machine


Samsung EXCEN PRO Pick and Place Machine

As a high speed modular mounter that applies a high speed rotary head equipped with 16 nozzles, EXCEN realizes the world’s highest speed of 120,000 CPH among mounters of the same class as well as the world’s highest area productivity. In addition, it secures the reliability of fine chip placement by applying the function to monitor pre- and post-part placement, SVS (Side-view Vision System), and maximizes work convenience and actual productivity by applying various operation modes including non-stop device type change, mixed production of different boards as well as the SMART Feeder that realizes the world’s first Auto Splicing and Auto Loading functions.

120,000 CPH(Optimum)

Ultra Slim Design with a Total Length of 1.25m

Applies High Rotary Modular Head

Side-view Vision System(SVS)   - Monitoring of pre- and post-part placement

Mixed Production of Different Boards/

Independent Production at the Front and Rear/

Non-stop Change-over of Device Types

High Speed and High Precision Feeder

SMART Feeder - The world’s first Auto Splicing and Auto Loading functions


Realizes the Highest Placement Speed of 120,000 CPH by Applying a High Speed Rotary Head Equipped with 16 Nozzles

Increases Actual Productivity by Reducing the Waiting Time Between Part Pickup and Placement to Zero(Cycloidal Motion)

Ultra Slim Design with a Total Length of 1.25m with Line Length and Area Productivity Being 50% and 200% of Those of Existing High Speed Lines, Respectively


Side-view Vision System(SVS)

Secures fine chip placement reliability by adopting a function to monitor pre- and post-part placement status

Applies an Electrically Driven High Speed and High Precision Feeder

Enables a stable supply of parts through high performance servo control

Applies Samsung’s original high precision accuracy compensation algorithm and mechanism to minimize accuracy deviation over time

Automatic Pickup Position Correction Function

Feeders have a fiducial mark for automatic recognition of part pockets - Applies automatic feeding after reel replacement

The function to recognize the nozzle center after automatic nozzle change allows for automatic correction of nozzle offset

Automatic correction of pickup error during pickup through part center recognition offset


Modular Head

Applies a modular head to allow an exchange between the high speed head and multi-functional head at the customers’ production site

Allows Simultaneous Production of Several Products Through Independent Production at the Front and Rear as well as Mixed Production of Different Types of Boards

Allows the Device Type to be Changed at a Lane without Stopping the Machine by Providing a Non-stop Device Type Change Function

Increased machine operation efficiency through advance preparation using a docking cart

Allows Maximization of Actual Productivity Through Various Operation Modes

Independent production at the front and rear mixed production of different boards, non-stop device type change, part placement in turns(Loading Time Zero)


Secures Feeder Operational Convenience by Applying a Super Slim Single Lane Electrically Driven Feeder

One-touch Exchange

Minimizes device type changing time by applying a one-touch exchange method to the docking cart, ANC and backup plate

SMART Feeder

Realizes the world’s first feeder equipped with Auto Splicing and Auto Loading functions · Applicable to reels with a small quantity of parts

Maximizes work convenience and actual productivity by automating the splicing process for part reel replacement which has been performed by hand
