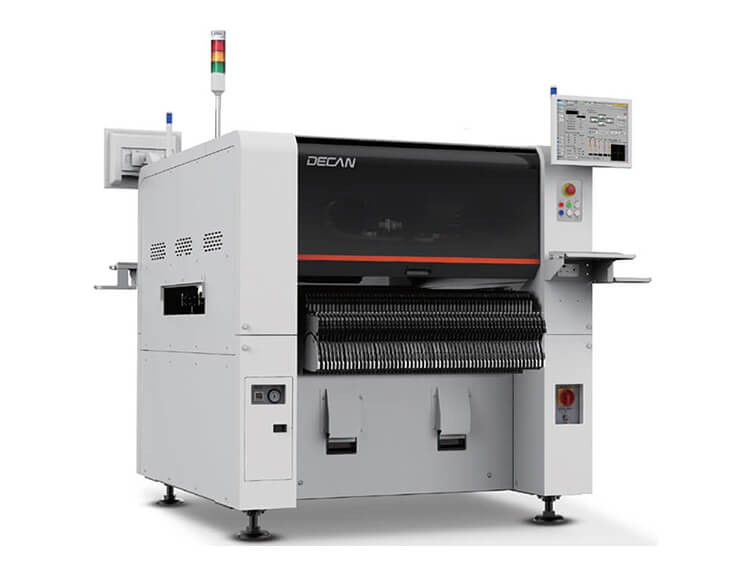

Hanwha DECAN L2 Pick and Place Machine

High Speed:92,000 CPH(HS10 head)
PCB Size : L510xW460mm
Feeder position:120ea
Weight: 1,800kg

Hanwha DECAN L2 Pick and Place Machine

Specifications:

Hanwha DECAN L2 Pick and Place Machine

Hanwha Pick and place machine DECAN L2, Samsung Pick and place machine DECAN L2, Hanwha chip mounter DECAN L2, Hanwha chip mounter DECAN L2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components;

High Performance

-2 Gantry, Flying VisionHead

-56,000 CPH (Optimum, FS06 Head)

High Reliability

-Suitable for Linear Motor, high precision and low noise

-Accuracy ± 40um @ Cpk≥1.0 (0402)

Flexible Production

-Modular Conveyor System

>> 6Spindle, 6 Flying Vision (FOV 24mm) Head

-Batch recognition with 6 cameras while picking up 6 components

-Processable components: 0402 ~ 21mm, H12mm

>> Low-noise, low-vibration high-speed placement with Linearmotor

-Suitable for Y-axis Linear Motor and realizes high noise reduction and vibration with high acceleration and deceleration using Twin servo Control

>> LEDLens protrusion recognition function (patent pending)

-Recognition of protrusions to distinguish LED lens types

-Added protrusions to distinguish lenses with similar shape but different thickness, which can recognize Lens (15 °, 30 °)

>> Identify the LED lighting source as the center and mount Lens

-Supports the function of recognizing the LED lighting source as the center and mounting Lens, which enhances the component processing ability

-Can handle PCB L1,200xW460mm

▶ Speed : 56,000 CPH (Optimum)

▶ Structure : 2 Gantry x 6 Spindles/Head

▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)

±30μm Cpk≥1.0 (IC)

▶ Parts Size : 0402~□55mm, L75 (H25mm)

▶ PCB Size : L510xW460mm (Standard)

L1,200xW460mm (Option)

▶ Wide Part Handling Capability

▶ Various PCB Transfer Systems

▶ Verified Production History Management Solution

▶ High Speed Placement

▶Dimension(mm):1,430(L) x 1,740(D) x 1,485(H)

▶ Weight: 1,800kg

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
