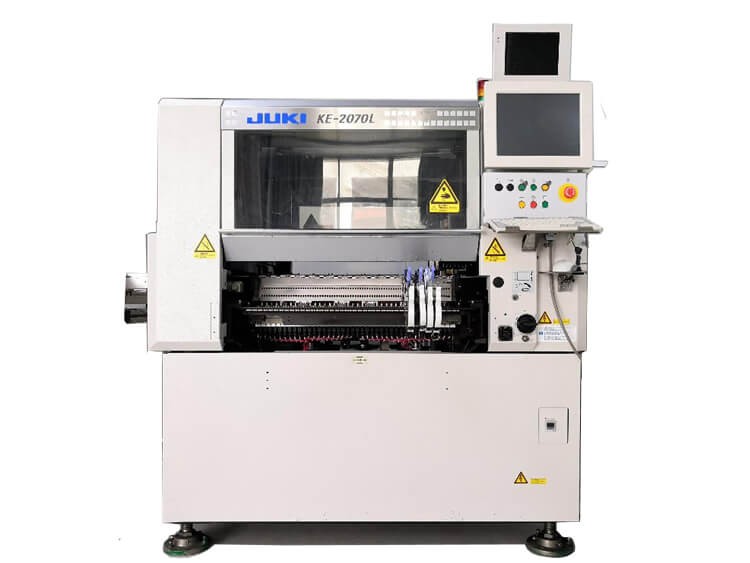

JUKI KE2070 Pick and Place Machine

Mounting Speed: 20000CPH
weight 1530kg
PCB size 330 × 250mm

JUKI KE2070 Pick and Place Machine

Specifications:


JUKI KE2070 Pick and Place Machine

Chip theoretical speed of 0.155 seconds / chip

Mounting range 0402 (British 01005) chip ~ 33.5mm square components

Positioning accuracy of plus or minus 0.05mm

PCB size 330 × 250mm

Equipment size 1,400 × 1,393 × 1,455mm

Rated power 3KVA

Equipment weight 1530kg

The JUKI 2070 is an upgraded version of the JUKI 2050 with 6 standard patch heads for high-precision

image recognition of small IC components, theoretically 23300 points per hour.

The actual production capacity of about 20000 hours per hour.JUKI KE products over the years to get highly

acclaimed customers, as the module concept of a single module,

to support flexible and flexible production line composition.

JUKI 2070 parameters

Model Name High-speed Mounter KE-2070M / L / E

Substrate size M Substrate (330 × 250mm)

L substrate (410 × 360mm)

E substrate (510 × 460mm)

Component height 6mm specifications

12mm specifications

20mm Specifications _

25mm Specifications _

Component Size Laser Identification 0402 (English 01005) chip ~ 33.5mm square components

Image recognition 1.0 × 0.5mm ~ 33.5mm square components

Component placement speed of the best 0.155 seconds / chip (23300CPH)

IC element 4600CPH *

Component placement accuracy Laser recognition ± 0.05mm

Image recognition ± 0.04mm

Component mounting types up to 80 (converted into 8mm band)

Power three-phase AC200 ~ 415V

Rated power 3KVA

Use air pressure 0.5 ± 0.05Mpa

Air consumption (standard state) 345L / min

Device Size (W × D × H) M Substrate 1,400 × 1,393 × 1,455 mm

L substrate 1,500 × 1,500 × 1,455mm

E substrate 1,730 × 1,600 × 1,455 mm

Weight about 1530kg
