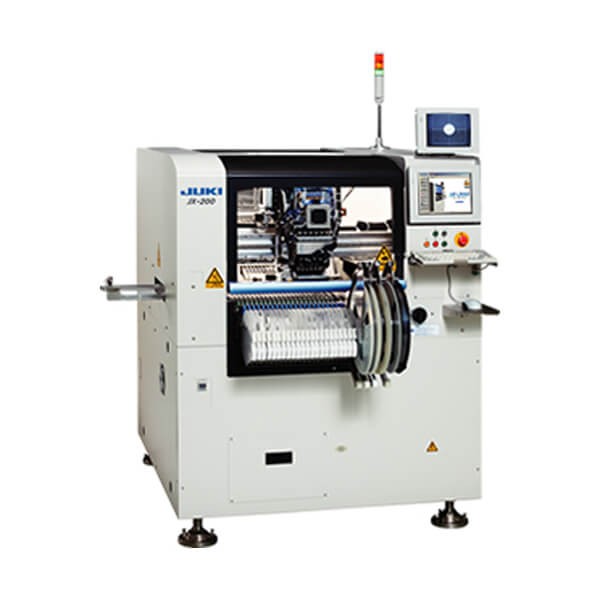

JUKI JX-200 Pick and Place Machine

Max PCB:410mm× 250 mm
Mounting Speed: 18,050CPH
components ranging:0603~33.5mm

JUKI JX-200 Pick and Place Machine

Specifications:

JUKI JX-200 Pick and Place Machine

Chip : 18,050CPH(0.199Sec./chip/Optimum)/13,900CPH(IPC9850)
IC : 4,400CPH
Component size
Laser recognition : 0603 ※2 ~33.5mm
Vision recognition Standard camera : 3mm~33.5mm
High-resolution camera (option) : 1.0×0.5mm~24.0mm
Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
high-speed and high precision placement technology
Superior Versatility
High Quality Placement Technology
Easy and Compact
Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)
2 HMS is required when a 0603 component is placed. (option)

Board size

Min.50 × 50 Max.800*1 × 250mm

Component height

12mm

20mm

Component size

Laser recognition

0603*2 33.5mm

Visionrecognition

Standard camera

3mm 33.5mm

High-resolution camera (option)

1.0 × 0.5mm 24.0mm

Placement speed

Chip

Optimum

0.199Sec./chip (18,050 CPH)

IPC9850

13,900CPH

IC

4,400CPH

Placement accuracy

Laser recognition

±0.05mm (±3σ)

Vision recognition

±0.04mm

Feeder inputs

Max.60 on 8mmT/F

When using Longer sized PWB(800mm) option. (standard specification is Max.410mm)

HMS is required when a 0603 component is placed. (option)

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
