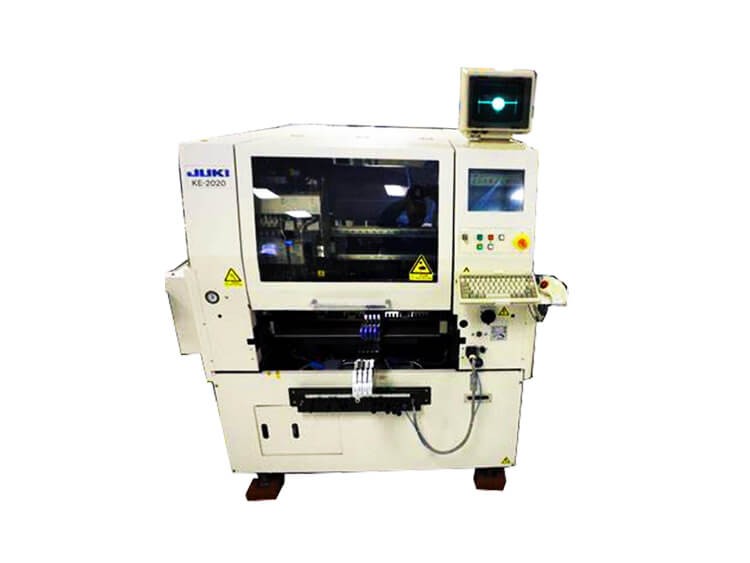

JUKI KE2020 Pick and Place Machine

Applicable Components: 0603 (0201)-20mm
Board size:330×250mm
Feeder inputs:80
placement capacity:11,100CPH

JUKI KE2020 Pick and Place Machine

Specifications:

JUKI KE2020 Pick and Place Machine

The ultra-flexible KE-2020 can place a wide range of components from 0603 and ICs, to odd-form, all at a high rate of speed.

11,100CPH chip (laser centering/effective tact)

1,300CPH: IC (vision centering/effective tact),

One multi-nozzle laser head (4 nozzles) plus one high resolution head (1 nozzle)

from 0603 mm0201mm to 74mm square components or 50×150mm

0402 (01005) option factory installed.

Vision centering system (featuring bottom, side, and back lighting, ball recognition and split recognition)

1 Actual throughput may vary.

2 Please download brochure for details.

Specifications

Board size M size(330×250mm)

L size(410×360mm)

L-wide(510×360mm)

E size(510×460mm)*1

Component size Laser recognition 0603 (0201)20mm or 26.5×11mm

(0402 (01005) optional)*5

Vision recognition 1.0×0.5mm*2mm20mm or 26.5×11mm

Placement speed Chip 11,000CPH*2

IC 2,290CPH*3

Placement accuracy Laser recognition ±0.05mm

Vision recognition ±0.04mm

Feeder inputs Max. 80 on 8mm T/F*4

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
