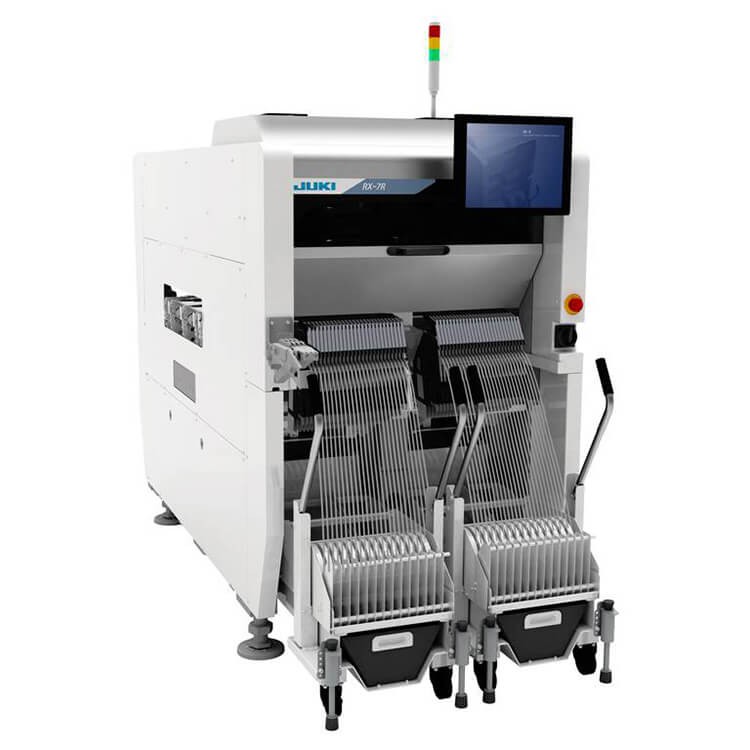

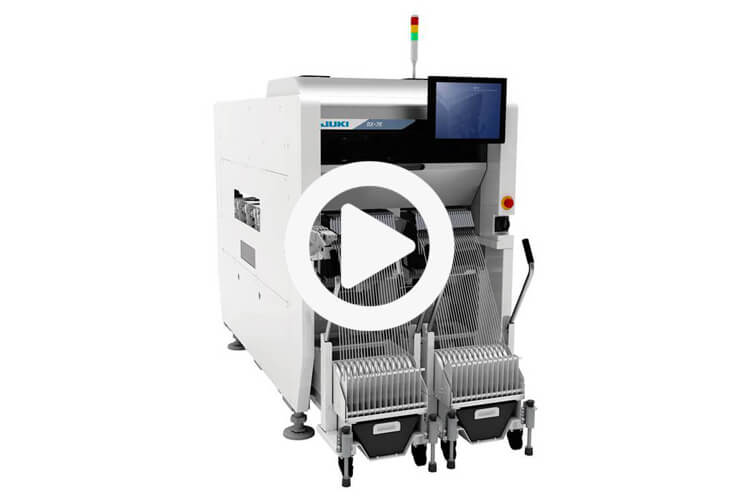

JUKI RX-7R Pick and Place Machine

Applicable Components: 03015 chip ~ 25mm square element
Board size:510mm×450mm
Feeder inputs:max 76
placement capacity:75,000CPH

JUKI RX-7R Pick and Place Machine

Specifications:

JUKI RX-7R Pick and Place Machine

Component placement speed (optimal conditions): Chip components 75,000 CPH

Element size: 03015 chip ~ 25mm square element

P16 Rotary head enables high-speed, high-density placement of extremely small components

P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components

Space-saving design with a width of 998mm

Supports dual-track production

By combining the placement head, the optimal production line can be constructed according to the production variety.

High production performance achieved by the unique planetary placement head and parallel dual placement head structure

Compatible with small IC components with 03015 chip to 25mm

High -Speed Compact Modular Mounter RX-7R


(P16S×P16S head)

(P16S×P8 head)

(P8×P8 head)

Board size

Single lane conveyer

50×50~510mm×450mm

Single lane conveyer
Single lane mode

50×50~510mm×450mm

Single lane conveyer
Dual lane mode

50×50~510mm×250mm

Component height

3mm

3mm(P16S head)

10.5mm

10.5mm(P8 head)

Component size

03015~5mm

03015~5mm(P16S head)

0603~25mm

0603~25mm(P8 head)

Placement speed (Optimum)

Chip

75,000 CPH

54,900 CPH

34,800 CPH

IC

-

6,400 CPH

12,800 CPH

Placement accuracy

Chip

±0.04mm(Cpk≥1)

IC

-

±0.04mm

Feeder capacity

Up to 56

Power supply

3 phase AC200V,220V-430V

Apparent power

2.3kVA

Operating air pressure

0.5±0.05MPa

Air consumption (standard)

20L/ANR(during normal operation)

Machine dimensions (W x D x H)

998×1,895×1,530mm

998×1,895×1,530mm

Mass (approximately)

about 1,820kg
