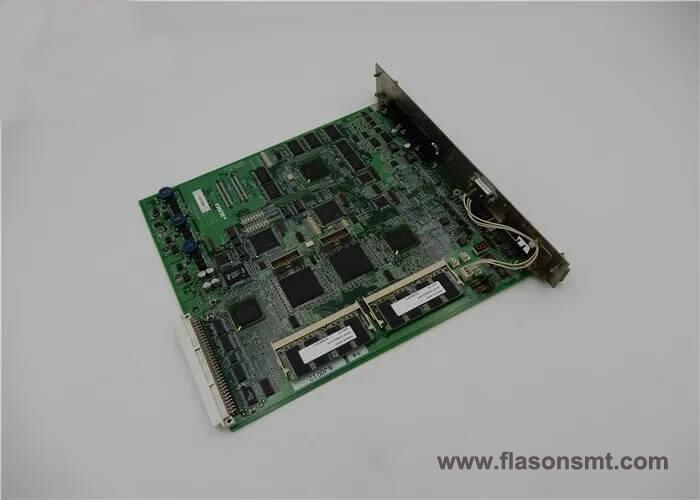

JUKI IPX3 PCB ASM B 40001921

JUKI IPX3 PCB ASM B 40001921

Specifications:

【RX-7】Pipe diagram

1 EZ1-492-203-11 VACUUM PUMP ASSY

2 EZ1-492-241-12 SOLENOID ASSY (TROLLEY LOCK)

3 EZ1-492-242-13 SOLENOID ASSY (AIR SUPPLY)

4 EZ1-492-357-11 ELECTROMAGNETIC ASSY

5 EZ1-492-358-11 ELECTROMAGNETIC ASSY

6 EZ1-798-472-11 SWITCH PRESSURE (ISE30A-C6H)

7 EZ1-798-473-11 SWITCH PRESSURE (ZSE30A-C6H)

8 EZ2-023-682-31 REGULATOR, PRECISION (IR1010-01-BG)

9 EZ2-108-828-01 MANIFOLD (VVQ2000-FPG-02-X9)

10 EZ2-672-089-31 PLUG (KQ2P-08), BLANKING

11 EZ4-271-381-01 CYLINDER (SSD-X-20-10), AIR

12 EZ4-294-534-01 CONTROLLER (AS2002F-06) SPEED

13 EZ4-436-830-11 SILENCER (AN15-02)

14 EZ4-446-715-21 REJUICER (KQ2R06-08A)

15 EZ4-446-715-51 REJUICER (KQ2R08-12A)

16 EZ4-447-053-11 UNION (KQ2H06-M5N) HAL

17 EZ4-447-063-21 UNION (KQ2L06-01AS), ELBOW

18 EZ4-447-063-31 UNION (KQ2L06-02AS), ELBOW

19 EZ4-447-063-51 UNION (KQ2L08-02AS), ELBOW

20 EZ4-447-063-71 UNION (KQ2L12-02AS), ELBOW

21 EZ4-447-063-91 UNION (KQ2L12-04AS), ELBOW

22 EZ4-447-107-21 ELBOW (KQ2L12-99A), STREET

23 EZ4-447-109-11 UNION (KQ2L06-M5A), ELBOW

24 EZ4-447-063-41 UNION (KQ2L08-01AS), ELBOW

25 EZ1-482-181-11 FERRITE CLAMP (GRFC-13) FERRITE CLAMP (GRFC-13) 2

26 EZ4-447-182-11 JOINT (KQ2T06-00A), TEE

27 EZ4-447-186-11 WYE (KQ2U06-00A), UNION

28 EZ4-447-213-21 WYE (KQ2U06-08A), UNION

29 EZ4-447-247-21 STRAIGHT (KQ2H08-00A)

30 EZ4-447-247-41 STRAIGHT (KQ2H12-00A

31 EZ4-447-248-61 UNION (KQ2H12-02AS), HALF

32 EZ4-447-250-11 STRAIGHT (KQ2H06-08A)

33 EZ4-453-569-01 PLUG (CYP025-08B29449)

34 EZ4-454-729-01 CYLINDER(CXSM32-100), DUAL ROD

35 EZ4-454-742-01 SILENCER (ANA1-03)

36 EZ4-454-743-01 CONTROLLER (AS2201F-01-06SA)

37 EZ4-455-483-01 ELBOW (3/8), STREET

38 EZ4-457-358-01 VALVE (MVP63-J), MECHANICAL

39 EZ4-458-430-01 AIRCOMBINATION(AC30D-02DG-R-A)

40 EZ4-460-696-01 CYLINDER (CJ2D16-150A)

41 EZ4-462-965-01 COUPLER (MC-04SHB), MICRO

42 EZ4-463-167-01 SILENCER (AN05-M5)

43 EZ4-701-316-01 ELBOW, STREET

44 EZ4-702-324-11 ELBO (M-5HL-6), HOSE

45 EZ4-703-607-02 COUPLER, HIGH (20PM)

46 EZ4-703-619-01 SOCKET

47 EZ4-705-238-11 MANIFOLD (KM11-08-12-10)

48 EZ4-707-030-21 PLUG, TAPER SCREW (MSWT2)

49 EZ4-719-971-01 NIPPLE, JOINT (KQ2N06-99)
