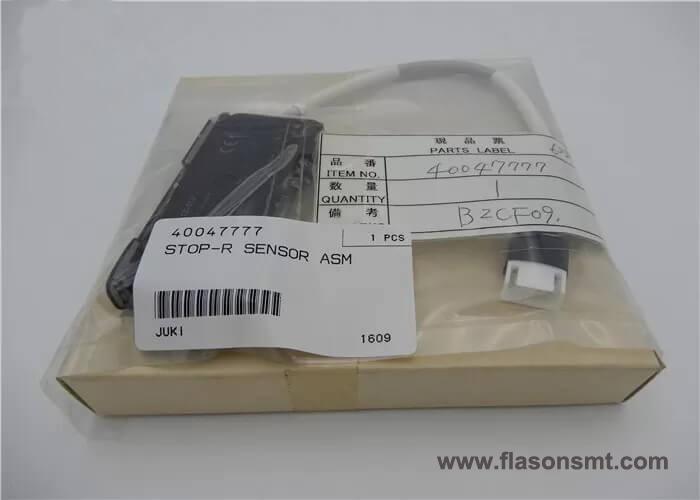

JUKI FX-3 STOP R SENSOR 40047777 HPX-AG01-1S-013 HPF-S368-A
Specifications:
JUKI FX-3 STOP R SENSOR 40047777 HPX-AG01-1S-013 HPF-S368-A
【RX-7】SYSTEM DIAGRAM (3)
【RX-7】SYSTEM DIAGRAM (3)
1 EZ1-969-340-13 HARNESS (C CAN-C CNT)
2 EZA-191-678-0A CONVEYOR CONT COMPL
3 EZ1-969-343-13 HARNESS (C DRV1-C CNT1)
4 EZ1-492-150-11 DRIVER PULSE MOTOR
5 EZ1-969-337-12 HARNESS (C DRV1-CV MOTOR)
6 EZ1-492-218-12 MOTOR ASSY
7 EZ1-492-218-21 MOTOR ASSY
8 EZ1-492-218-32 MOTOR ASSY
9 EZ1-492-218-42 MOTOR ASSY
10 EZ1-492-225-11 SENSOR ASSY
11 EZ1-492-226-11 SENSOR ASSY
12 EZ1-492-226-21 SENSOR ASSY
13 EZ1-492-225-21 SENSOR ASSY
14 EZ1-492-226-31 SENSOR ASSY
15 EZ1-492-226-41 SENSOR ASSY
16 EZ1-492-213-11 AMPLIFIER SENSOR (FX-502)
17 EZ1-492-208-11 AMPLIFIER SENSOR (FX-501)
18 EZ1-492-253-12 SENSOR ASSY
19 EZ1-492-252-12 SENSOR ASSY
20 401-61071 HARNESS(PWST FR)
21 401-61070 HARNESS(PWST FL)
22 401-61079 HARNESS(PWST RR)
23 401-61078 HARNESS(PWST RL)
24 401-61069 HARNESS(C CNT1-PWBST)
25 EZ1-969-351-14 HARNESS (BOX C-POW)
26 EZ1-969-356-12 HARNESS (C CNT1-C CNT2 (+) )
27 EZ1-969-356-22 HARNESS (C CNT1-C CNT2 (G) )
28 EZ1-969-344-13 HARNESS (C DRV2-C CNT2)
29 EZ1-492-151-11 DRIVER PULSE MOTOR
30 EZ1-492-200-31 FAN ASSY (DRV)
31 EZ1-969-338-11 HARNESS (C DRV2-W MOTOR)
32 EZ1-492-227-11 MOTOR ASSY
33 EZ1-492-228-11 MOTOR ASSY
34 EZ1-969-804-11 HARNESS (NO3 OT-NO3 OT)
35 EZ1-492-215-11 SENSOR ASSY
36 EZ1-492-229-22 SENSOR ASSY
37 EZ1-492-311-11 SENSOR ASSY
38 EZ1-492-215-21 SENSOR ASSY
39 EZ1-492-229-31 SENSOR ASSY
40 EZ1-492-229-11 SENSOR ASSY
Keywords:
JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.
