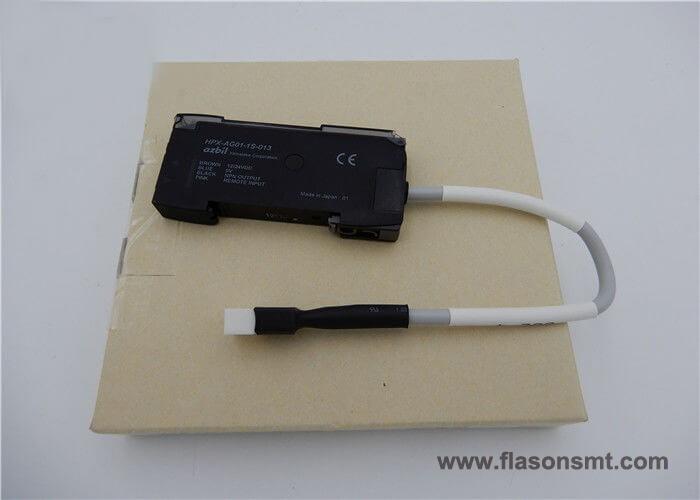

JUKI FX-3 STOP L SENSOR 40047774 HPX-AG01-1S-013 HPF-S368-A

JUKI FX-3 STOP L SENSOR 40047774 HPX-AG01-1S-013 HPF-S368-A

Specifications:

JUKI FX-3 STOP L SENSOR 40047774 HPX-AG01-1S-013 HPF-S368-A

134 PJ-3010405-05 HALF UNION

135 BT-0400251-EA URETHANE TUBE BLUE 4X2.5

136 SM-6030802-TN SCREW

137 401-94728 Z_SLIDE_BRACKET

138 SM-6020302-TR SCREW M2 L=3

139 SB-1040013-00 BEARING

140 401-94736 Z_SLIDE_SHAFT_1

141 400-01139 NOZZLE OUTER SCREW

142 401-82861 STEEL_BALL

143 E9635-455-000 REVISION SEAL

144 HX-0023300-0E CABLE BAND

145 HX-0023300-00 CABLE BAND

146 401-83349 NZL-UP SV CABLE ASM

21.HEAD COMPONENTS (3)

REF.NO NOTE PART NO D E S C R I P T I O N

1 #01 401-82931 HEAD_PLATE_ASSY

2 #02 401-94752 HEAD_PLATE_ASSY_CD

3 PH-0500122-C0 PARALLEL PIN TYPE B 5X12

4 SM-4040601-SC SCREW M4X0.7 L=6

5 HX-0034400-00 FIXED BASE

6 SL-6041492-TN SCREW M4 L=14

7 400-47317 HEAD_HANDLE

8 SL-6041092-TN SCREW M4 L=10

9 HX-0029400-00 FIXED BASE

10 SM-4040601-SC SCREW M4X0.7 L=6

11 #01 401-86173 X_NUT_HOLDER_B (1)

12 #01 401-86172 X_NUT_HOLDER_A

13 #01 PH-0400082-C0 PARALLEL PIN TYPE B 4X8

14 #01 SM-6051202-TN SCREW M5X0.8 L=12

15 #01 PH-0400122-C0 PARALLEL PIN TYPE B 4X12

16 #01 SL-6051692-TN SCREW M5 L=16

17 SM-6061402-TN SCREW

18 401-82882 LIMIT_DUMPER_ZA

19 401-82884 LIMIT_DAMPER_ZA_U

20 EZ-4454738-01 BEARING (MTA06-15) ANGULAR

21 EZ-4463629-01 NUT (Z) BEARING

22 EZ-4454740-01 SCREW (BLK0606S-3G1) BALL

23 401-82918 ANGULAR_PLATE_D6

24 SL-6040892-TN SCREW M4 L=8

25 401-87431 SERVO MOTOR 30W
