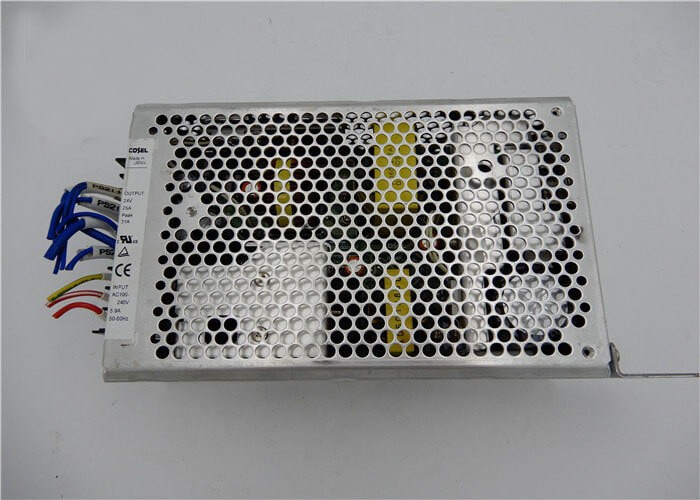

JUKI FX-3 POWER SUPPLY ADA600F-24

JUKI FX-3 POWER SUPPLY ADA600F-24

Specifications:

96 401-36335 SERVO MOTOR 30W

97 401-82252 HDR-ZA AMP PWR CABLE ASM

98 401-82253 HDR-ZB AMP PWR CABLE ASM

99 401-82254 HDR-ZC AMP PWR CABLE ASM

100 401-82222 HDR-TA AMP PWR CABLE ASM

101 401-82250 TAMP-HDR SERIAL CABLE ASM

102 401-82215 TA CN5-CN0713 CABLE ASM

103 401-82251 HDR-SV CABLE ASM

104 401-33002 NZL UP SENSOR 6T L CABLE ASM

105 401-33003 NZL UP SENSOR 6T R CABLE ASM

106 401-89336 HDR-Z VAC SENSOR CABLE ASM

107 401-82489 VACUUM_UNIT

108 #01 401-88158 EU BTM-BANK UP CABLE ASM(EN)

109 #01 400-02344 BUP SHORT WIRE(EN) ASM

110 #01 400-02287 BANK SW CABLE ASSY

111 401-82229 CN A5-X/YL/YR CNP1 CABLE ASM

62.SYSTEM DIAGRAM (2)

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-28871 IO CONTROL PCB ASM

2 401-82247 IO-F BKR SERIAL CABLE ASM

3 401-29320 IO-SF SERIAL CABLE ASM

4 401-83536 POWER SUPPLY UNIT B ASM

5 #01 401-87824 POWER SUPPLY UNIT B ASM_EN

6 401-83413 POSITION BOARD

7 401-82224 SF-XY AMP RELAY CABLE ASM

8 401-29652 X AXIS DRIVER

9 401-33006 SF RELAY-FX AMP CABLE ASM

10 401-29654 Y AXIS DRIVER

11 401-82823 SF RELAY-FYL AMP CABLE ASM

12 401-82197 BANK CABLE (31_32-EB1 CN18) ASM

13 401-82225 IPX X ENC RELAY CABLE ASM

14 401-90921 IP-X11 SET GEN ASM(RS-1)

15 401-32991 LIGHT CONTROL PCB ASM

16 401-90013 CAMERA TRIG CABLE ASM

17 401-28872 SAFETY PCB ASM

18 401-86309 F BKR-SF CABLE ASM

19 401-29020 SF-OPSW RELAY WIRE ASM

20 401-29025 EMG SW CABLE ASM
