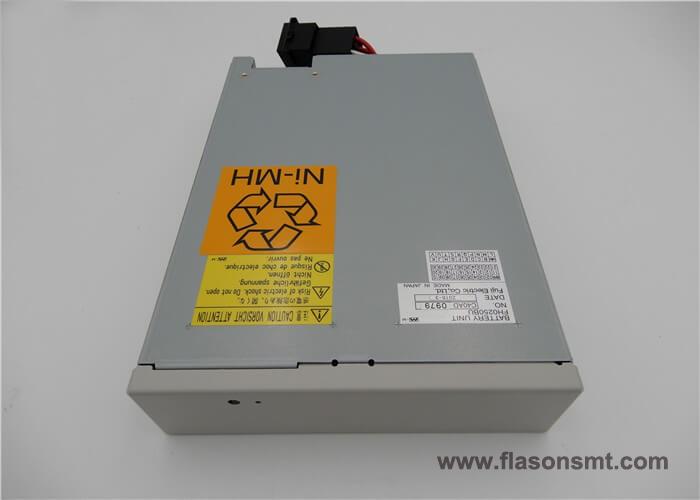

JUKI FX-3 FX-3R BATTERY 40048007 FH0250BU FH0300BU
Specifications:
JUKI FX-3 FX-3R BATTERY 40048007 FH0250BU FH0300BU
1 BASE FRAME COMPONENTS(1)
REF.NO NOTE PART NO D E S C R I P T I O N
1 EA-9500B01-00 CABLE BAND
2 EA-9500B02-00 CABLE BAND 150
3 HX-0006500-0B CABLE BAND
4 HX-0006500-0C CABLE BAND
5 SL-6040892-TN SCREW M4 L=8
6 E1035-729-000 ADJUSTER FOOT
7 400-00519 BASEFRAME NUT
8 E1044-729-000-A ADJUSTER NUT 36
9 400-00403 ADJUST BOLT
10 SM-6126002-TN SCREW M12 L=60
11 WS-1220002-KN SPRING WASHER
12 WP-1302501-SC WASHER 13X24X2.5
13 SM-6083002-TN SCREW M8 L=30
14 NM-6080002-SC NUT M8X1.25 TYPE2
15 #02 400-13307 FP PUSHER
16 #02 NM-6080001-SC NUT M8X1.25 TYPE1
17 401-36012 SEALING_PACKING
18 401-47543 ADJUST_PLATE
19 SL-6062092-TN SCREW M6 L=20
20 #01 400-00535 BASEFRAME NUT(EN)
21 401-83260 Y_SUPPORT_L
22 401-47580 HOLE_COVER_L_ASSY
23 400-94739 HOLE_COVER_COPLA
24 SL-6061292-TN SCREW M6 L=12
25 401-47555 EXT_FRAME_HOLE_COVER
26 SL-6041092-TN SCREW M4 L=10
27 SL-6082592-TN SCREW M8 L=25
28 401-83258 Y_SUPPORT_R
29 401-08337 FAN BR
30 401-89090 DC FAN ASM
31 SL-4033591-SC SCREW M3 L=35
32 WP-0320501-SC WASHER M3
33 NM-6030001-SC NUT M3X0.5 TYPE1
34 SL-3061232-TN SCREW M6 L=12
35 401-83543 SMEMA_BR_ASM_RS
36 401-66645 IF_PANEL_L
37 SL-4030881-SC SCREW M3 L=8 38 401-29031 SMEMA CABLE ASM
39 SL-6061292-TN SCREW M6 L=12
40 SL-6082592-TN SCREW M8 L=25
41 401-83544 MTC_IF_PANEL-R_ASM_RS
42 401-66644 IF_PANEL_R_EPV
43 401-29031 SMEMA CABLE ASM
44 SL-4030881-SC SCREW M3 L=8
45 401-20296 EPV_HOLE_COVER
