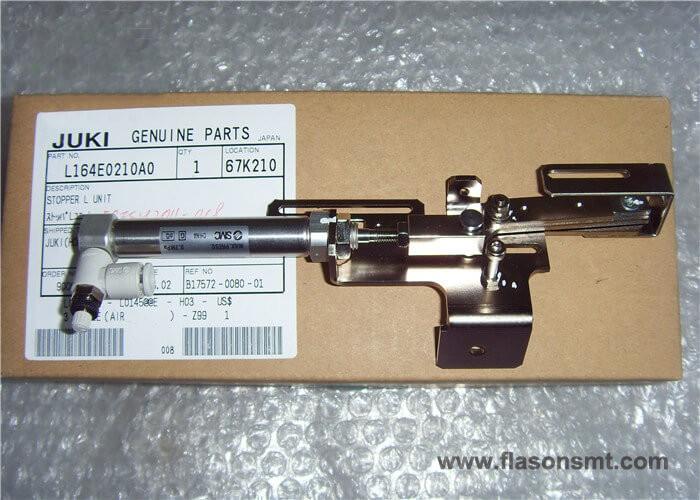

JUKI FX-1 FX-1R STOPPER L UNIT L164E0210A0
Specifications:
JUKI FX-1 FX-1R STOPPER L UNIT L164E0210A0
63.SYSTEM DIAGRAM (3)
REF.NO NOTE PART NO D E S C R I P T I O N 1 401-28871 IO CONTROL PCB ASM
2 401-29323 IO-R BKR SERIAL CABLE ASM
3 401-28872 SAFETY PCB ASM
4 401-82246 R BKR-SF CABLE ASM
5 401-82245 SF-YR TOP SENSOR RELAY CABLE ASM
6 401-65028 XY LMT SENSOR ASM
7 400-02254 COVER OPEN SW CABLE ASM
8 401-46405 COVER LOCK SV ASM
9 401-29010 MINI SIGNAL TOWER CABLE ASM(OP)
10 401-82268 MTS I/F CABLE ASM
11 401-84212 MTS I/F CABLE2 ASM
12 401-29336 MTS I/F BR CABLE ASM
13 401-28875 CONVEYOR PCB ASM
14 EZ-1755690-11 RELAY POWER (RJ1S-CLD-D24)
15 EZ-1755691-11 SOCKET RELAY (SJ1S-05B)
16 401-83536 POWER SUPPLY UNIT B ASM
17 #01 401-87824 POWER SUPPLY UNIT B ASM_EN
18 EZ-1755690-11 RELAY POWER (RJ1S-CLD-D24)
19 EZ-1755691-11 SOCKET RELAY (SJ1S-05B)
20 401-28876 E BANK RELAY PCB ASM
21 401-29247 F EBKR FG CABLE ASM
22 401-82296 EBKR-OUT LOADER SERIAL CABLE ASM2
23 401-82248 R BKR EU TOP PWR CABLE ASM
24 401-83349 NZL-UP SV CABLE ASM
25 401-82226 CN B4/B5-CN1341/1441 CABLE ASM
26 401-84380 CN1307/1407 - CN1344/1444 CABLE ASM
27 401-84107 CN1443/1444 - RL4_6/10 CABLE ASM
28 HB-0018100-00 RELAY
29 HB-0004800-10 RELAY
30 HB-0002100-10 RELAY HOLOER PYC-A1
31 401-85779 BKR-FD FLOAT E CABLE ASM
32 401-81501 SEPARATE SENSOR RECEIVER ASM
33 401-81502 SEPARATE SENSOR EMISSION ASM
34 401-82265 BKR-FD FLOATLEFT E CABLE ASM
35 401-82818 BKR-BANK AIR SW RELAY CABLE ASM
36 401-29082 R BKR-OPSW RELAY CABLE ASM
37 401-90601 START SW CABLE ASM
38 401-87771 MPC CABLE ASM(RS-1)
