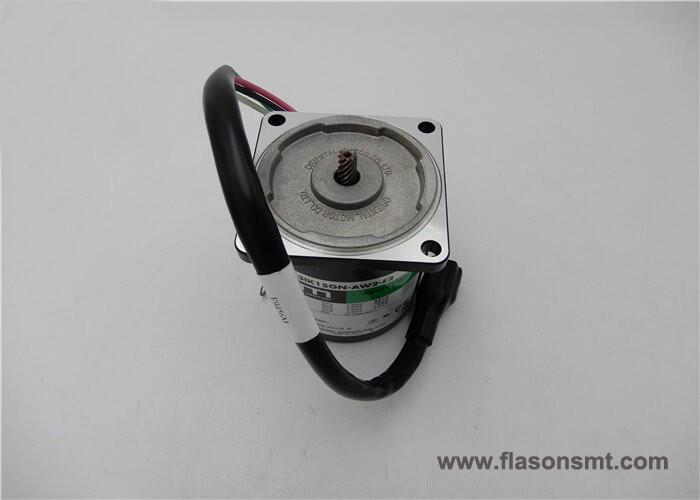

JUKI 750 760 Center Motor Cable ASM 3IK15GN-AW2-E2
Specifications:
JUKI 750 760 Center Motor Cable ASM 3IK15GN-AW2-E2
【COMMON】Head assy - 1
1 EZ4-453-960-01 PLATE (3), SUPPORT
2 EZ4-454-035-03 COVER (1), HEAD
3 EZ4-454-036-03 COVER (2), HEAD
4 EZ4-454-037-03 COVER (3), HEAD
5 EZ4-454-078-01 BOLT (SET-M3X6-NI)
6 EZ4-454-079-01 BOLT (SETS-M2.6X5)
7 EZ4-454-830-01 LOW HEAD SCREW (M3X4)
8 EZ4-458-496-01 COVER (1-A), HEAD
A11
【COMMON】Head assy - 2
1 EZ1-492-165-13 SENSOR ASSY (NOZZLE SHAFT)
2 EZ4-454-015-01 NUT, PLATE
3 EZ4-454-830-01 LOW HEAD SCREW (M3X4)
4 EZ4-457-753-01 CONNECT PLATE (2)
5 EZ4-465-279-01 HEAD COVE RBRACKET
6 EZ7-683-000-23 BOLT, HEXAGON SOCKET 2X8 6
7 EZ7-683-480-24 BOLT, HEXAGON SOCKET 2X5 6
8 EZ1-492-167-11 MOTOR ASSY (VALVE)
9 EZ1-492-168-11 SENSOR ASSY (VALVE)
10 EZ1-492-168-11 SENSOR ASSY (VALVE)
11 EZ4-454-007-01 VALEV LEVER HOLDER
12 EZ4-454-008-01 VALVE MOTOR BASE BARCKET
13 EZ4-454-010-01 CAM FOLLOWER SHAFT
14 EZ4-454-014-01 NOZZLE SENSOR BRACKET
15 EZ4-454-040-01 LEVER SHAFT
16 EZ4-454-046-01 BEARING (MR83)
17 EZ4-454-067-01 CAMFLLOWER (CFS3)
18 EZ4-454-073-01 LM GUIDE MLC7R45 LM
19 EZ4-454-715-01 LEVER SHAFT BEARING COLLAR
20 EZ4-457-186-01 PLATE, SENSOR BRACKET
21 EZ4-457-187-01 PLATE, LEVER SENSOR FITTING
22 EZ4-457-188-01 LEVER SENSOR DOG
23 EZ4-457-202-01 LEVER BLOCK
24 EZ4-701-529-01 TIE MOUNT (MB1)
25 EZ4-718-721-01 BOLT HEXAGON SOCKET(M2X3 SUS)
26 EZ7-621-996-05 BOLT HEXAGON SOCKET 2.6X5 6
27 EZ7-682-247-04 SCREW +K 3X6 +K 3X6 6
28 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8 6
29 EZ7-683-405-04 BOLT,HEXAGON SOCKET 3X10 6
30 EZ7-683-480-14 BOLT, HEXAGON SOCKET 2X4 6
31 EZ7-684-023-04 N 3 TYPE 2 N 3 TYPE 2 2
32 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6
33 EZ3-681-308-02 BOLT (M2X6), HOLE, HEXAGON
34 401-55272 SLIT (OS-EX10-12)
Keywords:
JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.
