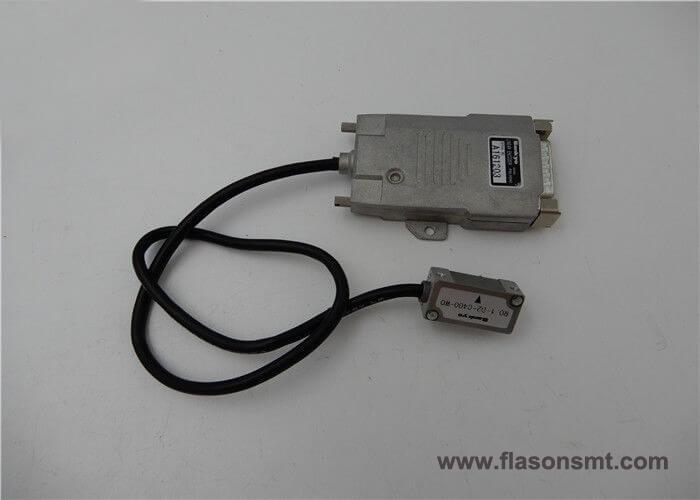

JUKI 3010 3020 X Y Linear Scale Head PSLH040 40129630

JUKI 3010 3020 X Y Linear Scale Head PSLH040 40129630

Specifications:

JUKI 3010 3020 X Y Linear Scale Head PSLH040 40129630

84 401-10316 SPACER

85 #02 401-83208 GUIDE_RAIL_R

86 401-83783 ELEC BANK L-SIDE PCB ASM

87 401-83784 ELEC BANK R-SIDE PCB ASM

88 401-84971 POSITION_LAVEL_56

89 401-83203 BANK_CONNECTOR_A_BR

90 SM-4040601-SC SCREW M4X0.7 L=6

91 HX-0029400-00 FIXED BASE

92 SL-6051292-TN SCREW M5 L=12

49.REPLACING OVERALL CHANGER TRUCK COMPONENTS(2)

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-83608 CUTTER_ASM

2 401-83210 LINER_WAY

3 SM-6052002-TN SCREW

4 401-83189 EDGE_BASE_SIDE

5 SL-6043092-TN SCREW M4 L=30

6 401-86283 UPPER_EDGE_BASE

7 401-86284 BRUSH_B

8 SL-6041242-TN SCREW M4 L=12

9 PS-0300162-KH SPRING PIN 3X16

10 401-83183 GUIDE_SLOPE

11 SL-6043092-TN SCREW M4 L=30

12 PH-0300104-S0 PARALLEL PIN TYPE B 3X10

13 401-85336 UPPER_EDGE

14 SM-6040602-TN SCREW

15 SB-7080002-00 BEARING

16 401-83126 HOLD_SHAFT

17 RE-0600000-K0 E-RING 6

18 401-83127 HOLD_PLATE

19 SM-1040852-TP DISH SCREW

20 401-83128 SPRING_PLATE

21 SL-6040892-TN SCREW M4 L=8

22 401-83129 PUSHER_STOP_PLATE

23 401-83181 SLIDE_BASE

24 SL-6051692-TN SCREW M5 L=16

25 SL-6051092-TN SCREW M5 L=10

26 SM-6051402-TN SCREW M5 L=14

27 NM-6050001-SC NUT M5X0.8 TYPE1

28 401-83131 PUSHER_SPRRING_R

29 401-82493 LOWER_EDGE

30 SL-6051092-TN SCREW M5 L=10

31 401-83133 MDUB50-45DZ

32 PC-0152030-00 SPEED CONTROLLER

33 SM-6084002-TN SCREW M8 L=40

34 401-83134 CYLINDER_SUPPORT_BLOCK

35 SM-6086002-TN SCREW

36 401-83201 CONNECTION_BLOCK

37 SM-6064502-TP SCREW M6 L=45

38 WS-0610002-KN SPRING WASHER M6

39 WP-0641601-SC WASHER M6

40 401-83136 WASHER

41 401-83137 COLLAR

42 401-83138 SLIDE_SPACER
