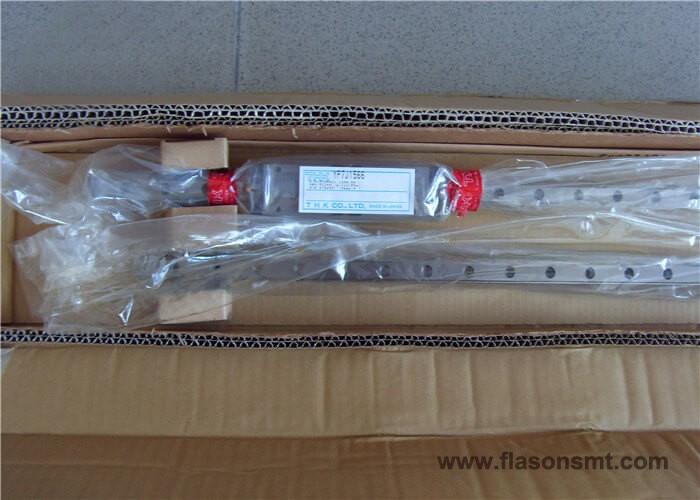

JUKI 2010 2020 LM GUIDE X 40024281 40023580
Specifications:
JUKI 2010 2020 LM GUIDE X 40024281 40023580
53 401-14319 EDGE_CUSHION_F_L
54 CM-3002000-06 FINGER INJURY CAUTION LABEL (100)
55 400-51621 CHIP BOX NOTICE LABEL G1
56 400-01464 STOPPER SUPPORT
57 SL-6041092-TN SCREW M4 L=10
58 400-49671 COVER CUSHION
59 SM-4030601-SC SCREW M3X0.5 L=6
60 401-47221 STOPPER_NUT_PLATE
61 NM-3040520-SF FLANGE NUT M4
62 CM-3002000-04 FINGER INJURY CAUTION LABEL (50)
63 WP-0651646-SC WASHER
64 SM-1040801-SC SCREW M4X0.7 L=8
65 WP-0482016-SC PLAIN WASHER 4.8X11.5X2
66 401-83471 LOCATION_LABEL_RS-1
67 400-79329 CAUTION SEAL
68 401-86243 STAY_BRACKET
69 SL-6061692-TN BOLT
12 COVER COMPONENTS (6)(AFTER M/C REV.D)
REF.NO NOTE PART NO D E S C R I P T I O N
1 401-96674 SAFETY_COVER_F_UNIT_CD
2 401-96686 SAFETY_COVER_FRAME_F
3 401-96687 SAFETY_COVER_STAY_F
4 401-96689 SCF_PLATE_FU
5 SL-6040892-TN SCREW M4 L=8
6 NM-3050610-SF FLANGE NUT M5
7 401-22998 HANDLE
8 SM-6062002-TN SCREW M6 L=20
9 NM-3060810-SF FLANGE NUT M6
10 401-13967 HANDLE_L
11 401-34618 SD_LOCK_BRACKET
12 SL-6040892-TN SCREW M4 L=8
13 400-80490 KEY_SCREW
14 401-14319 EDGE_CUSHION_F_L
15 CM-3002000-06 FINGER INJURY CAUTION LABEL (100)
16 400-51621 CHIP BOX NOTICE LABEL G1
17 CM-3002000-04 FINGER INJURY CAUTION LABEL (50)
18 400-01464 STOPPER SUPPORT
19 SL-6041092-TN SCREW
20 400-49671 COVER CUSHION
21 SM-4030601-SC SCREW M3X0.5 L=6
