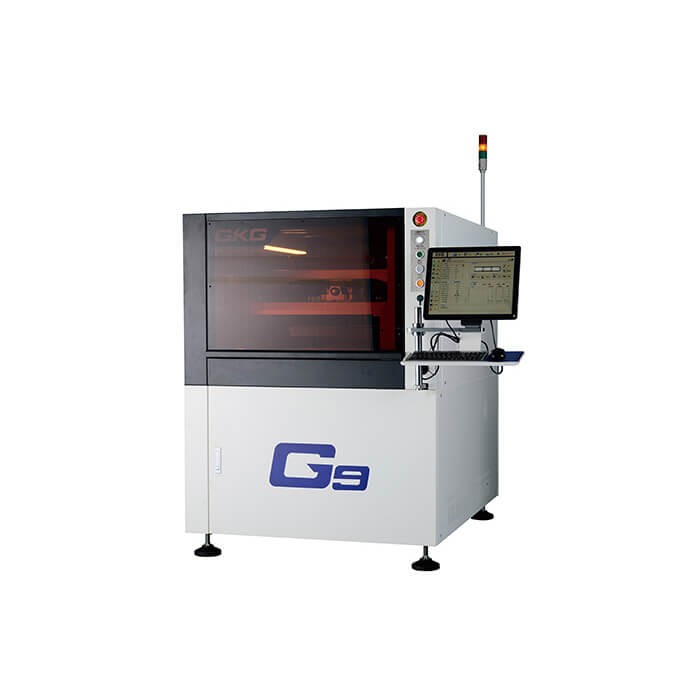

GKG G9 SMT Stencil Printer

PCB:450X340mm
PCB weight: 3KG
size: 1530x1172x1385mm
Weight:1000Kg

GKG G9 SMT Stencil Printer

Specifications:

GKG G9 SMT Stencil Printer

GKG G9 automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25 pitch, high precision and high speed.

G9 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Item

Parameter

Repeat Position Accuracy

±0.01mm(Test data and method are available)

Printing Accuracy

±0.018mm(Test data and method are available)

Printing Speed / Cycle Time

<8s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min-Max

470mm X340mm-737mm X737mm

Screen Stencil Size/Thickness

20mm ~ 40mm

PCB Size/Min-Max/Thickness5

0X50mm-450X340mm/0.4~15mm

PCB Warpage Ratio

<1%Based on diagonal length

Bottom of Board Size

15mmStandard configuration, 25mm

Edge of Board Size

3mm

Conveyor Height

900±40mm

Conveyor Direction

Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed

100-1500mm/sec Programmable control

Board Positioning

Support System

Magnetic pin/Side support block/Flexible automatic pinoptional

Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting

Print head

Two indepandent Motorised printheads

Squeegee Speed

6~300mm/sec

Squeegee Pressure

0-10kg software controlclosed-loop pressure feedback, pressure value visible

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.

Steel Mesh Separation Speed

0.1~20mm/sec Programmable Control

Cleaning Method

Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods

Table Adjustment Range

X:±3mm; Y:±7mm θ:±2°

Type of Fiducial Point

Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System

Single digital camera for upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions/Weight

Depends on exactly model

Operation Temperature

-20°C ~ +45°C

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
