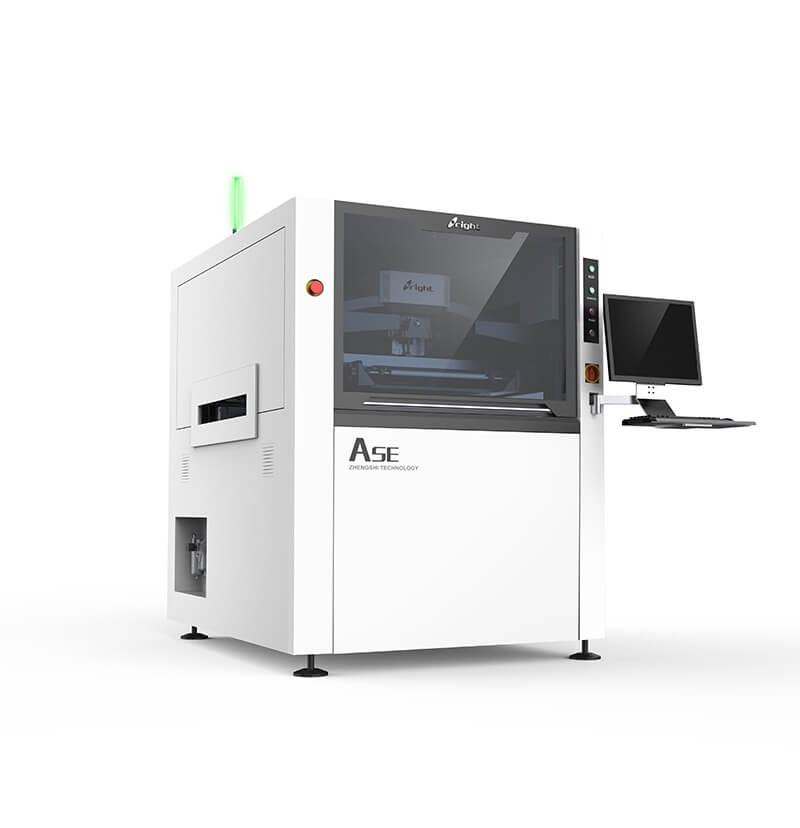

ASE SMT Stencil Printer

PCB Max Size 400×340mm
Printing Accuracy ±0.025mm
size: 1220(L)×1355(W)×1500(H)mm
Weight:1000Kg

ASE SMT Stencil Printer

Specifications:

ASE SMT Stencil Printer

A Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~400mm x 340mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Model

Ase

Screen Frames

Min Size

470×370mm

Max Size

737×737mm

Thickness

25~40mm

PCB Min Size

50×50mm

PCB Max Size

400×340mm

PCB Thickness

0.4~6mm

PCB Warpage

<1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right



Transport Speed

Max 1500mm/sProgrammable

Board Location

PCB

Support System

Magnetic Pin/Up-down table adjusted/support block

Clamping System

Side clamping,vacuum nozzle



Printer Head

Two independent motorised printhead

Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15kg

Squeegee Angel

60°/55°/45°

Squeegee Type

Stainless steelstandard,plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

Dry WetVacuum Programmable



Table Adjustment Ranges

X:±10mm;Y:±10mm;θ:±2°

Machine

Repeate Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm

Cycle Time

<7sExclude Printing & Cleaning

Product Changeover

<5Min

Air Required

4.5~6kg/cm2

Power Input

AC:220±10%,50/60HZ1F3KW

Control Method

PC Control

Machine Dimensions

1220L×1355W×1500Hmm

Machine Weight

Approx:1000kg
