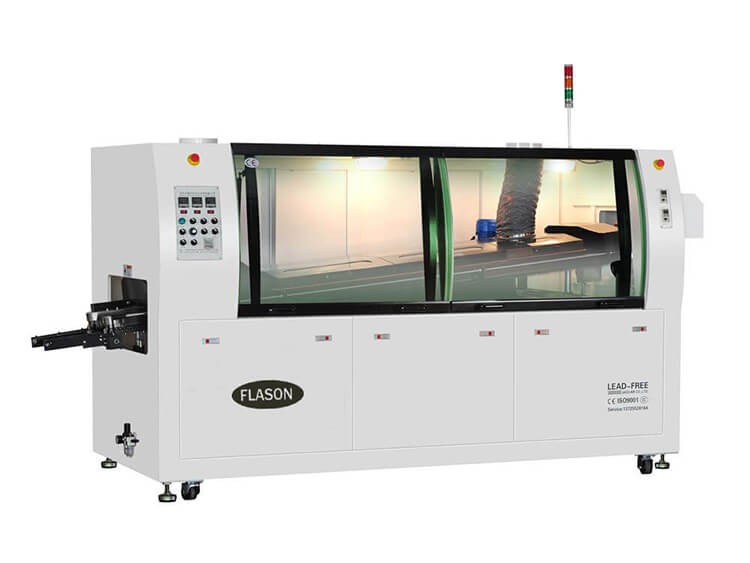

Wave Soldering Machine N300

Wave Soldering Machine N300

Specifications:

Wave Soldering Machine N300

1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.

4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

5. Titanium solder fingers, high strengthened double v-groove with tin resistant

6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.

8. PID close loop controlled hot air pre-heaters

9. Timer startup feature for solder pot, solder melted in within 90 minutes.

10. With black box memory function, the machine can always store the SPC data, improve work efficiency.

11. Automatic finger cleaner equipped.

12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No.	FLASON N300
Number of Pre-heaters	3
Pre-heater Passage	1450mm
Body size	2800(L)*1250(W)*1560(H)
Outside dimension	3600(L)*1250(W)*1560(H)
Weight	1000KG
Total/steady consumption	19KW/5-7KW
Air supply	0.5MPa
Preheater style	Hot air
Preheater consumption	220V 6KW
Control  method	PC +PLC/press keys/Touch screen
Range of temp. set-point	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder pot capacity	280KG
Solder pot temperature	300ºC
Solder pot consumption	380V 9KW
Solder temp. control method	PID&SSR
Wave motor power	1KW 220V
Solder melting	About 120mins for setting 250ºC
PCB  width	50-300mm
Conveyor speed	0-1800mm/min
Conveyor direction	L-R (R-L optional)
Conveyor inclination	4-7 º
Flux pressure/capacity	3-5 bar/5.2L
