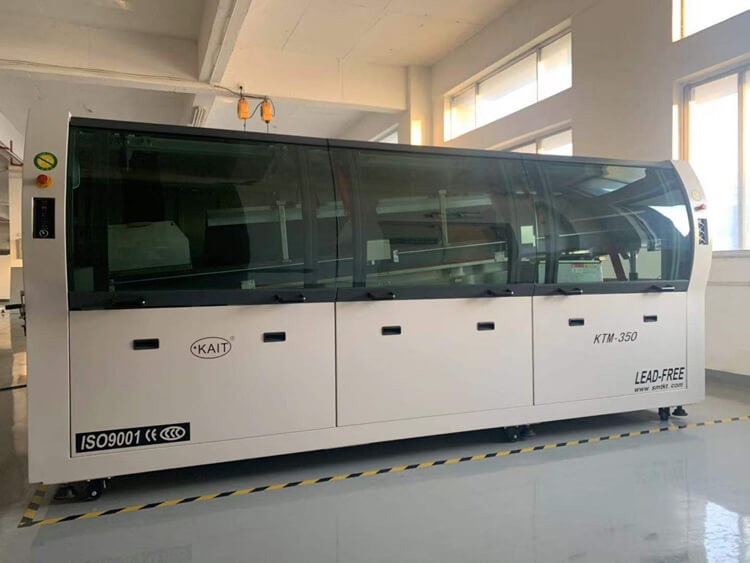

Wave Soldering Machine KTM-350

Wave Soldering Machine KTM-350

Specifications:

Wave Soldering Machine KTM-350

Structure Streamline cover design, the frame is made of thick square tube, the cover is made of 2mm steel plate. There are totally 6 wheels to move the machine easily.

Front door structure Fully enclosed glass door, transparent，pneumatic holder to support, ensure the operating and repairing space.

Machine top Anti-explosion lamp

Surface treatment Painted with white color

Flux spraying

Spray nozzle Spray range:20~65mm,adjustable，nozzle height: 50~80mm adjustable，max. flow rate:100ml／min

Air circuit Acid and alkali resistant air pipe, the brand is SMC from Japan.

Nozzle moving system Step motor to drive, Mitsubishi PLC, with proximity switch and entrance sensor to control, according to the coming PCB’s speed and width, the spraying system can detect and starts to work.

Flux recycle system Tray to hold the waste water and flux, can be draw out easily, make maintenance very convenient.

Flux exhaust system Exhaust system：stainless steel mesh frame+ double layers filter，recycle the flux to maximum.

Isolated air curtain Air pressure type knife, blow the redundant flux into the recycling box, to avoid the flux to enter into the preheating zones, ensures the safety.

Spraying box structure Made of full stainless steel, easy to clean and repair. Anti-corrosion, very durable.

Preheating

Preheating zone quan. Preheating length is 1800mm, divided into 4 sections, supply abundant adjusting space, very good for big PCB and complicated PCB. Reduce the heat impact on PCB, improve the production efficiency.

Temp. control method Mitsubishi temp. collecting module, PID is very precise and stable.

Heating parts The heaters are imported from Taiwan, heat up very fast, with long life, small thermo lag; The heat is even in the zones.

Model	KTM-350	Solder pot type	4th adjustable
PCB width	Max.50~350mm	Heating technology	Matrix straight heating, heating efficiency up to 95%
PCB convey height	750±50mm	Solder pot temp.	Room temp.to 350℃、accuracy±1-2℃
Conveyor speed	0-1800mm／Min	Solder pot temp. accuracy	±1℃
Angle	3~7 degree	Finger types	FJ type/L type/ customized
Component height limit	Max.100mm	Solder bar adding way	Manually
Wave height range	0~18mm keep steady	Temp. control	P.I.D+SSR
Wave quantity	2	Machine control	PLC+PC
Preheating length	1800MM	Width adjust	Manually/motorized (option)
Preheating zone	4 zones	Flux adding way	Automatically
Conveyor direction	Left to right	Flux flow rate	10~100ml/min
Preheat power	20KW	Spray method	Step motor
Preheat temp.	Room temp.~250℃ (adjustable)	Flux recycle	Tray to collect
Heating model	Hot air	Electricity	3P 5 wires 380V/3P 220V
Solder bar type	Lead-free	Total power	Max.22kw
Solder pot power	14kw	Normal running power	Approx.3-5kw
Solder pot capacity	Approx.450kg	Air supply	4~7KG/CM2
Solder pot material	Cast iron	Dimension	4500*1600*1730
Weight	Approx.1500kg
