Samsung SM471 Pick and Place Machine

Mounting range 0402Chip ~ 14mm IC
Patch speed 75,000 CPH
1650L * 1690D * 1485H
weight 1820KG

Samsung SM471 Pick and Place Machine


Samsung SM471 Pick and Place Machine

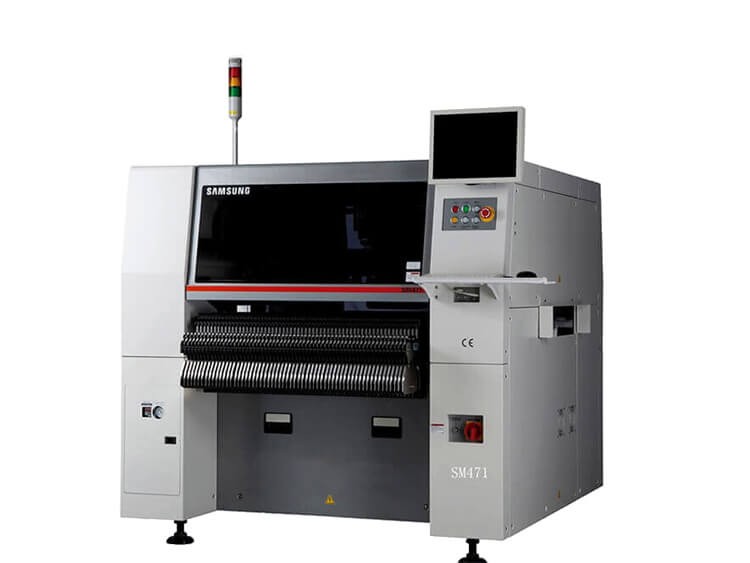

The Samsung SM471 is a high-speed pick and place machine equipped with 10 axes for each mount head and dual-boom,

high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .

0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

SM471 parameters


Samsung SM471Pick and Place Machine


Flying Camera


10spindles x 2 Gantry

Placing Speed

Chip1608 75,000 CPH (best)

Placement Accuracy

±50μm@μ+3σStandard cip)

Component size

Chip 0402(01005 inch)  ~ 14mm(H12mm) IC,Connector(pitch 0.4mm),※BGA,CSP(ball distance0.4mm)

PCB size




Single lane


Dual Lane

460Lx250(W) 610Lx250(W)(option)

PCB Thickness


Feeder input


Power Supply

AC 200/208/220/240/380/415V(50/60Hz,3Phase)Max 5.0KVA

Air Pressure

0.5~0.7MPa(5~7kgf/cm2) 350NL/min50NL/min(Vacuum Pump)




1,650(L) x 1,680(D) x 1,485(H)
