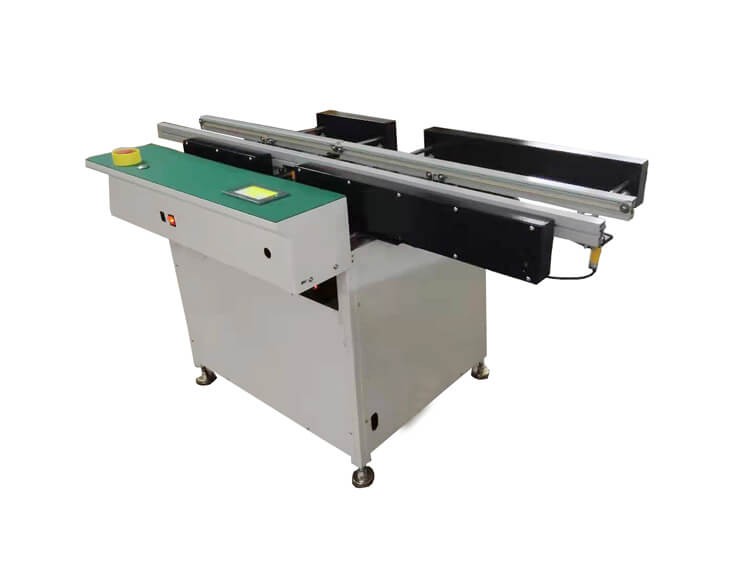

SMT Retractable Conveyor RC-350

Expansion Size 580mm
PCB Width: 50 to 350 mm
Outline dimensions 1500*750*900mm
Weight 150KG

SMT Retractable Conveyor RC-350


SMT Retractable Conveyor RC-350

1.The width adjustment of standard precision screw rods easy adjustment width

2.Professional wear-resistant anti-static flat belt and dedicated aluminum profile guide rail are used to ensure smooth connection and stable transportation;

3.The standard equipped signal cable(SMEMA) can be connected online with other equipment

4.Retractable Conveyor with different rail lengths can be customized according to customer requirements

5.The work surface is equipped with anti-static rubber to better prevent static electricity;

6.The transmission motor uses two 42 * 48 stepper motors


Retractable Conveyor

Outline dimensions


PCB width


Transport height


PCB transport direction


PCB transport Speed


Expansion Size


Expansion Control

PLC Control


Stepper motor

Expansion method

Two key conrol

Power supply

AC220V1P 50/60Hz

Power consumption


Track length


Control mode

PLC+touch screen




Dual line wire

Single lane

1 fixed,2nd moving
