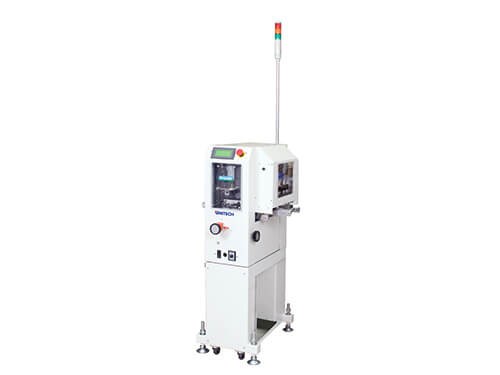

SMT PCB Cleaner UC-250M-CV

PCB size 50﹡50~330﹡250 mm
Adhesive roll 2 rolls
Width adjustment Manual
Weight About 120 kg

SMT PCB Cleaner UC-250M-CV

Specifications:

SMT PCB Cleaner UC-250M-CV

1.Specially designed for strict PCB surface clean requirement of SMT line.

2.Brush+Adhesive roller dual cleaning system.

3.Brush, adhesive roller, combine and pass mode,4 operation mode can be selected to use.

4.Can clean PCB top side surface with components mounted on the bottom side.

5.Standard equipped Ionizer system, greatly reduce the effect of ESD.

6.Contact type clean method, clean up to 99% dusts on PCB.

7.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.

8.Dual cleaning system assures better results than single brush or adhesive roller system.

9.Especially suitable for miner parts like 0201,01005 and precise parts like BGA, uBGA,CSP etc

10.The first SMT cleaning machine maker in the world, 10 years SMT Cleaner’s design and production experience.

11.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.

Item

UC-250M-CV Spec

PCB size

50﹡50~330﹡250 mm

PCB thickness

0.5~2.0 mm

Conveyor height

900±25 mm

Adhesive roll

2 rolls

Adhesive Paper

1 rolls

Brush

1 pcs

Vacuum unit

1 set

Conveyor direction

Left→Right or Right→Left

Conveyor fix side

Front side fixed or Rear side fixed

Width adjustment

Manual

Ionizer

Build-in

Air supply

0.5Mpa

Power supply

AC220V/100V, 50/60Hz,60W

Dimension

L570 x W620 x H1265(mm)

Weight

About 120 kg

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
