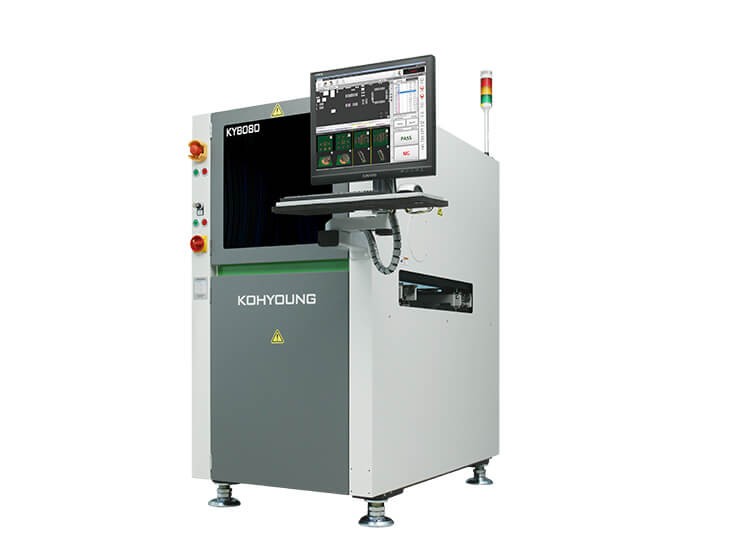

Koh Young KY8080 3D SPI

Min component: 01005
PCB size:350x330mm
Dimension:1000x1335x1627mm
weight:600kg

Koh Young KY8080 3D SPI

Specifications:

Koh Young KY8080 3D SPI

The KY-8030 is an in-line, fully automated SPI system that uses patented Koh Young shadow-free inspection technology and software to deliver 100% 3D inspection of solder paste.

• True patented 3D volume measurement

• No false calls – no escapes – no shadow problems

• Highest accuracy and repeatability

• No PCB color sensitivity

• Solder paste printing optimization - at its best

• Lower initial investment

• Low cost of ownership, fast ROI

• Shortest programming time

• Accurate, powerful SPC tool package

In-line SPI with no compromises KY-8030 is designed for manufacturers who need in-line SPI with no compromises in high precision and accuracy. With KY-8030, you buy the throughput capability that you need

KY-8030 is a process optimization tool built with world-class Koh Young quality components and engineering. It’s the perfect complement to your manufacturing line, where precise, accurate, repeatable results cannot be compromised. The KY-8030 is an in-line, fully automated SPI system that uses patented Koh Young shadow-free inspection technology and software to deliver 100% 3D inspection of solder paste. Superb Performance and Value in Automated 3D SPI

Medium-volume users will appreciate KY-8030’s rugged dependability and all the benefits of in-line 3D SPI but at a lower initial investment. It delivers superior value to the customer because it will out-perform costly competitive systems that don’t offer true 3D SPI.

Inspection Range


Metrology Capability

Volume, Area, Height, Offset, Bridging and Shape Deformity

Types of Defects

Insufficient/Excessive/Missing Paste, Bridging, Shape Deformity and Paste Offset

Measurement Principle

3D Shadow Free Moiré

Camera Technology


Camera

2MPix

XY Pixel Resolution: 20 µm 0.79 mils

Z Resolution: 0.37 µm 0.015 mils

Inspection Speed

at 20 um

Shadow Free Mode:15.0 cm2/sec 2.33 sq. inch/sec

High Speed Mode: 19.7 cm2/sec 3.05 sq. inch/sec

Volume Repeatability

< 1% at 3sigma (on a KY Calibration Target)

< 3% at 3sigma (on a PCB)

Height Accuracy

2mm

Gage R&R

< 10 % at 6Sigma (± 50 tolerance)

Max. PCB Warp

± 3.5 mm

Max. Paste Height

400um 15.75 mils

Min. Paste Deposit Size at 20um

Rectangle: 150um 5.91 mils

Circle Min: 200um 7.87 mils

Distance between Paste Deposit

100 mm (at 150 mm paste height) 3.94 mils (at 5.91 mils paste height)

PCB Handling

Conveyor Width Adjustment

Automatic

Conveyor Fix Type

Front/Rear Fixed (Factory Setting)

Conveyor Height

970 ~ 870 mm 38.19 ~ 34.25 inch

System & Installation requirements

Supply

Electrical 200 ~ 240VAC, 50/60 Hz Single phase

Air: 5 Kgf/cm2

Operating System

Windows XP Professiona

S/W

Statistical Analysis Tool

SPC Plus

Inspection Program Generation

Import GERBER Data (274X, 274D)

Options

Zoom Head (15, 20, 30 mm Autozoom)


Off-line SPC & Defect Review Station


Off-line Programming Station ODB++ File Conversion


Barcode Reader (1D/2D) HDD Raid 1 (Mirrored)


Certified Calibration Target UPS

Above specifications are subject to change whithout notice.
