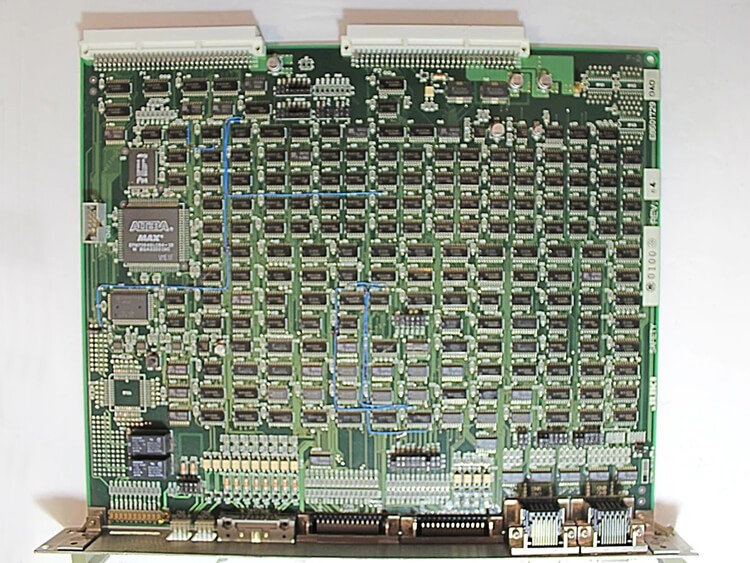

JUKI Rev 4 SAFETY BOARD E86017290A0

JUKI Rev 4 SAFETY BOARD E86017290A0

Specifications:

16 HX-0035400-0S SPACER

17 HX-0035400-0A SPACER

18 SL-6030692-TN SCREW M3 L=6

19 401-83549 BU_HOME_SENSOR_ASM

20 SM-4030801-SC SCREW M3X0.5 L=8

21 SL-6051092-TN SCREW M5 L=10

22 EA-9500B01-00 CABLE BAND

23 401-29042 AWC/BU ORG SENSOR CABLE ASM

24 401-83060 BU_SENSOR_BR

34.PWB CONVEYOR COMPONENTS (9)

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-83553 BU_UNIT

2 HX-0029400-00 FIXED BASE

3 401-85225 BU_BASE_RS

4 SM-4040801-SC SCREW M4X0.7 L=8

5 400-71334 BU_TIMING_BELT 　

6 401-83867 ENCORDER UNIT

7 400-93905 ENCORDER SHAFT

8 RC-0100001-KP SNAP RING M10

9 400-93906 STOPPER DISC

10 SL-6042092-TN SCREW M4 L=20

11 400-93612 ENCORDER PULLEY

12 SM-8040602-TP SCREW M4X0.7 L=6

13 SB-1100005-00 BEARING

14 400-93904 ENCORDER BR

15 WS-0820002-KN SPRING WASHER M8

16 WP-0841601-SC WASHER M8

17 SL-6051292-TN SCREW M5 L=12

18 SB-8160001-00 BEARING

19 SM-6040802-TN SCREW M4X0.7 L=8

20 SM-6051402-TN SCREW M5 L=14

21 SM-6085002-TN BOLT

22 SL-6051692-TN SCREW M5 L=16

23 401-83067 BU_MOTOR_BR

24 401-83554 TORQUE_SUPPORT_RS_ASM

25 SB-1170001-00 BEARING

26 E4156-729-000 NUT (M17X1)

27 E4144-729-000 THRUST COLLAR

28 401-28428 TORQUE_SUPPORT_J

29 SM-8050402-TP SCREW

30 L177E-721-000 SPT TBL MOTOR PULLEY 　

31 E4142-729-000 STOPPER PIN

32 401-83078 BU_TOSION_SPRING

33 SL-6041092-TN SCREW M4 L=10

34 SM-6041002-TN SCREW

35 401-29637 BU AXIS SERVO MOTOR
