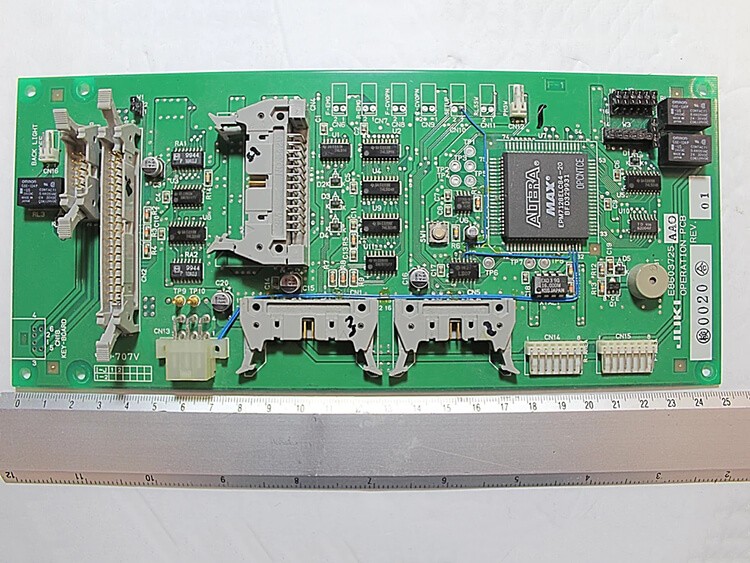

JUKI Rev 1 Operation PCB E8603725AA0

JUKI Rev 1 Operation PCB E8603725AA0

Specifications:

61 E2055-721-000 PULLEY SPACER

62 E2089-721-0A0 CONVEYOR PULLEY B ASM.

63 E2111-715-0A0 CONVEYOR PULLEY ASM.

64 E2160-721-000 PULLEY FLANGE

65 E3931-750-000 PULLEY WASHER

66 NM-6040001-SC NUT M4X0.7 TYPE1

67 SB-8160001-00 BEARING

68 SL-6030892-TN SCREW M3 L=8

69 SL-6031492-TN SCREW M3 L=14

70 SL-6041092-TN SCREW M4 L=10

71 SM-4040855-SC SCREW

72 SM-4042501-SC SCREW M4X0.7 L=25

73 SM-6040802-TN SCREW M4X0.7 L=8

74 SM-6041002-TN SCREW

75 WP-0430800-SC WASHER M4

76 WP-0430801-SC WASHER M4

77 WS-0410002-KN SPRING WASHER M4

78 401-83032 CONVEYOR_RAIL_S

79 401-83559 GUIDE SHAFT ASM

80 401-83057 GUIDE_SHAFT

81 WP-0501046-SC WASHER 5 X 14 X 1

82 SL-6051292-TN SCREW M5 L=12

83 SL-6052042-TN SCREW M5 L=20

28.PWB CONVEYOR COMPONENTS (3)

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-83560 SCREW SHAFT ASM

2 E2146-721-000 TIMING BELT

3 SB-1080002-00 SIDE BEARING

4 401-83059 SCREW_SHAFT

5 SM-8040602-TP SCREW M4X0.7 L=6

6 WP-0330516-SC WASHER 3.3X8X0.5

7 SM-6030602-TN SCREW M3X6

8 E2141-721-000 STOPPER COLLAR

9 SM-8040402-TP SCREW M4X0.7 L=4

10 401-84270 PULLEY_A

11 WP-0320500-SF WASHER 3.2X7X0.5

12 SL-6041692-TN SCREW M4 L=16

13 401-83563 DRIVE SHAFT ASM

14 E2141-721-000 STOPPER COLLAR

15 400-01005 DRIVE BELT C(L)

16 WP-0320500-SF WASHER 3.2X7X0.5

17 WP-0330516-SC WASHER 3.3X8X0.5

18 SM-6030602-TN SCREW M3X6

19 401-83058 DRIVE_SHAFT

20 400-46033 DRIVE BELT S(6)

21 400-00849 DRIVE PULLEY F ASM

22 SL-6031642-TN SCREW

23 400-00850 DRIVE PULLEY F

24 SM-8040602-TP SCREW M4X0.7 L=6

25 400-00851 MOTOR PULLEY B

26 SB-1080002-00 SIDE BEARING

27 SM-8040402-TP SCREW M4X0.7 L=4

29.PWB CONVEYOR COMPONENTS (4)
