JUKI RX-7R SMT Assembly line
JUKI RX-7R SMT production line

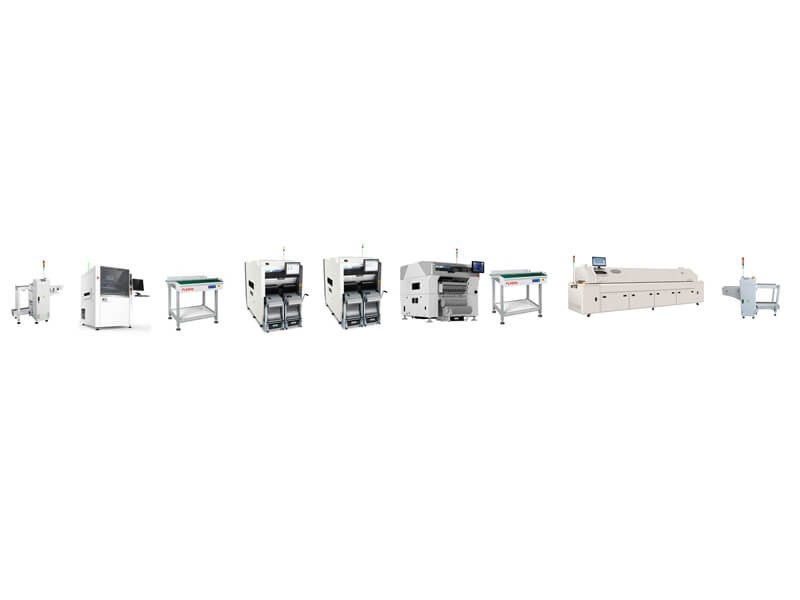

High Speed Automatic JUKI SMT production line, with 2 JUKI high speed pick and place machine RX-7R and 1 multifunction chip mounter RS-1R, placing speed can reach 200000 CPH.
1. PCB loader LD330
Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.
2. Automatic smt stencil printer G5
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~400x340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
3. high Speed JUKI RX-7R Pick and Place machine
Component placement speed (optimal conditions): Chip components 75,000 CPH
Element size: 03015 chip ~ 25mm square element
P16 Rotary head enables high-speed, high-density placement of extremely small components
P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components
Space-saving design with a width of 998mm
Supports dual-track production
Applicable Components: 03015 chip ~ 25mm square element
Feeder inputs:max 76
3.Multifunction JUKI RS-1R Pick and Place Machine
Class leading speed, up to 47,000 cph
Newly developed “Takumi Head” with changing recognition sensor height
Optimum line balance and highest throughput
Wide component range from 0201 (metric) to large connectors and ICs
Applicable Components: 0201~5050
4. SMT Reflow oven R10.
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
5.SMT PCB Unloader UNL330
2)Special Aluminum alloy guide rails and rubber belt
3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
4)Pneumatic PCB clamping structure
5)Attach one set 0.7m length pcb conveyor
6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm
7)PCB max size(L*W):(L)330*(W)250mm
