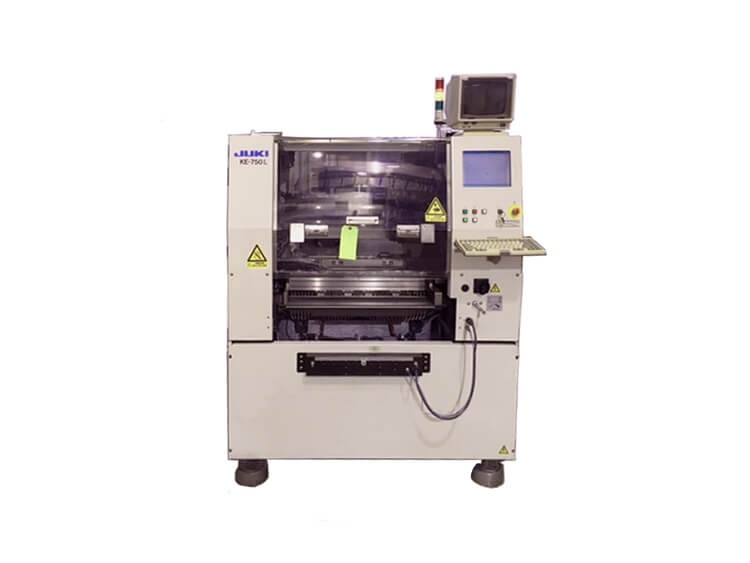

JUKI KE750 Pick and Place Machine

JUKI KE750 Pick and Place Machine
PCB size: 330 * 250mm
size: 1400 * 1440 * 1460mm
Weight: 1100KG

JUKI KE750 Pick and Place Machine

Specifications:

JUKI KE750 Pick and Place Machine

JUKI750 Placement machine is a medium-sized multi-function placement machine,

generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.

As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.

JUKI 750 placement head: 3

JUKI750 expected station: 80

Placement speed: 0.25sec / chip (3 at the same time attached to the attached)

JUKI750 placement accuracy: ± 0.1mm chip ± 0.09mm QFP (Laser)

Placement range: 1005 ~ 23.5mm (By Laser)

JUKI750 PCB size:

Maximum: 330 * 250mm

Min: 50 * 30mm

PCB thickness: 0.4 ~ 4mm

JUKI mid-speed placement machine 750

automatic / manual: automatic

Patch speed: 8000 (grain / hour)

PCB Dimensions:

L: 50.0 mm (min) -330.0 mm (max), W: 30.0 mm (min) -250.0 mm (max).

PCB thickness:: 0.40mm (min) -4mm (max)

Technical Parameters:

Component placement range:

0402-48mm * 48mm (chip, sot, sop, melf, QFP, connector, sop, plcc)

Component height: 0.3mm-10.5mm.

Pin spacing (Min): 0.4mm.

Component Dimensions: 0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max).

Nozzle Model: 10X, 20X.

Mounting accuracy: ± 0.1mm (LA), ± 0.04mm (LAIC)

Mounting Speed (Max): 11,250 components / hour

speed:0.25s 3 heads

laser collection accuracy:0.08mm

angle accuracy :0.001 degree.

thickness of PCB: 0.4mm~4mm

component size: 1.0*1.0*0.5MM~32MM*11MM.QFP 20MM*20MM. for bigger size optional

power supply: single phase

power: 2KW

JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)

Weight: 1100KG

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
