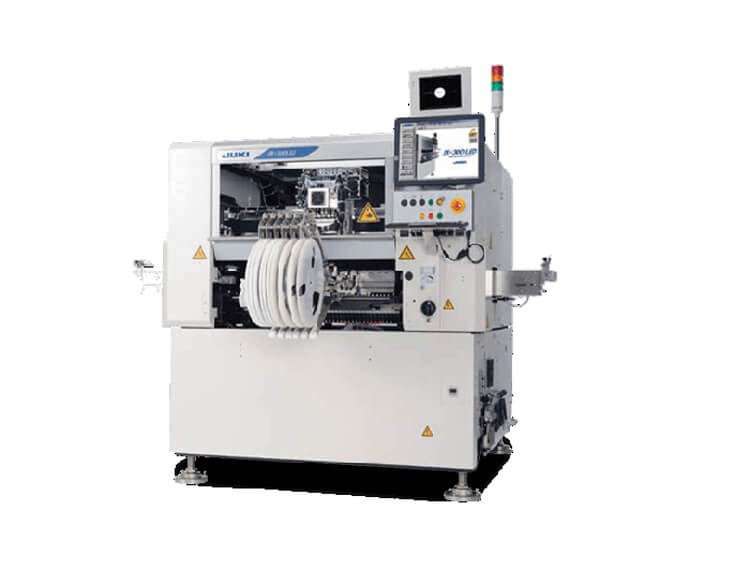

JUKI JX-300 LED Pick and Place Machine

BOARD SIZE:50 X 50 ~ 1,200 X 360mm
Mounting Speed: 18,300 CPH
components ranging: 0603(0201) ~ 33.5mm
FEEDER INPUTS:Max.40 in case of 8mm tape

JUKI JX-300 LED Pick and Place Machine

Specifications:

JUKI JX-300 LED Pick and Place Machine

The new JX-300 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.

Ultra-Long Board Support

High Speed

High Accuracy

Support Ultra-Long Boards up-to 1,500mm

High-speed clamping system reduces transport time for long and super-long boards.

Laser Centering for High Speed, High Accuracy

Head moves directly from the pick position to the placement position.

Wide Variety of Special Nozzles for LEDs

Nozzles specifically designed for LEDs.

Unique Features for Flexibility

Accurate Placement even without fiducial marks.

BOARD SIZE

Standard Specification:

50 X 50 ~ 1,200 X 360mm

Longer Sized PWB:

50 X 50 ~ 1,500 X 360mm

COMPONENT SPECS

Component Height:6mm/12mm

Component Size:Laser Recognition:0603(0201) ~ 33.5mm

FEEDER INPUTS:Max.40 in case of 8mm tape

PLACEMENT SPECS

Placement Speed (chip):

• Optimum: 23,300CPH

• IPC9850: 18,300 CPH

Placement Accuracy:

±0.05mm(Cpk≧1)

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
