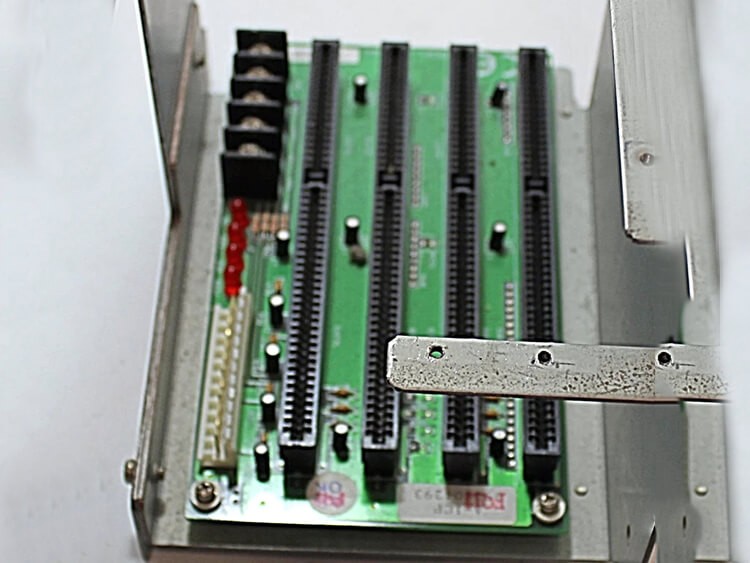

JUKI Board 990104293 T990308

JUKI Board 990104293 T990308

Specifications:

JUKI Board 990104293 T990308

1 401-28130 FCS_GLASS_PWB_ASM_RX-6

2 401-28131 GLASS_PLATE_FCS

3 401-28132 GLASS_PLATE_FRAME_B

4 400-27196 DRAWING PAPER

5 401-28142 JIG_TRAY_B

6 400-20304 FCS JIG CHIP B

7 400-27147 SILICON SHEET

8 401-28143 JIG_TRAY_U

9 401-87595 FCS_CARRYING_CASE_RS1

10 401-87596 INNER_PACKAGE_C_RS1

11 400-66811 INNER PACKAGE B

12 401-28154 LOW_HEAD_SCREW_M4

13 401-87704 FCS_JIG_CHIP_CASE_RS1

14 400-27312 FCS JIG CHIP HOLDER

15 400-27313 INNER A

16 401-87597 INNER_B

17 400-27315 INNER C

18 400-27410 INNER D

19 401-87598 INNER_E

20 401-85344 JIG_NOZZLE_LNC

21 401-11970 LAMINATING_SEAL

22 401-28134 ADHESIVE_SHEET

23 401-33122 FCS INSTRUCTION MANUAL(RX-6_ST)

24 400-66812 CUSHION A

25 400-66813 CUSHION B

26 400-27235 TRAYSEE

27 J1066-000-00B HEXAGONAL WRENCH KEY (2MM)

28 401-32594 CUSHION_C

29 401-33186 ENTRY_CD_ASM

30 401-32599 CUSHION_D

31 400-11453 CAL PIECE G

32 401-87434 CAL_PIECE_G2

33 401-87435 JIG_TRAY_G2

41.TRAY HOLDER COMPONENTS

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-83117 MTH3RB(TRAY_HOLDER_HALF)

2 401-82947 TH_PIN

3 401-82948 TH_PIN_BASE

4 NM-6050001-SC NUT M5X0.8 TYPE1

5 WP-0531001-SC WASHER M5

6 WS-0510002-KN SPRING WASHER M5

7 401-82949 TH_SIDE_PLATE

8 SL-6030692-TN SCREW M3 L=6

9 SM-6030502-TN SCREW M3 L=5

10 WS-0310002-KN SPRING WASHER M3

11 400-85741 LOCK_SP
