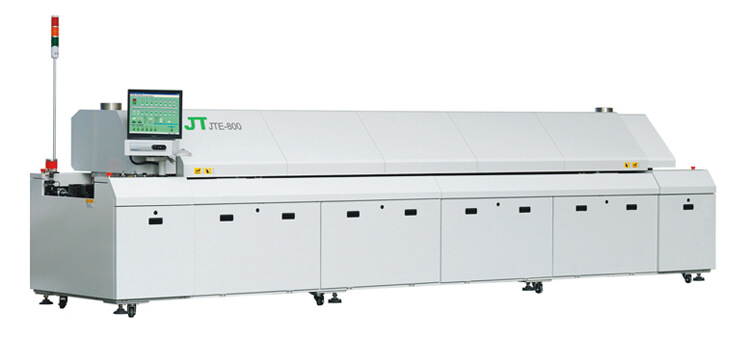

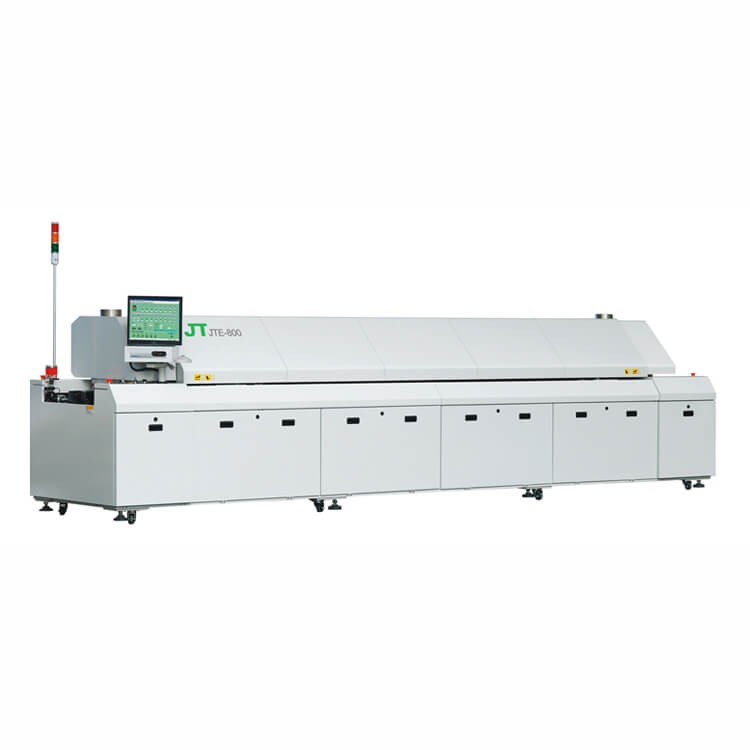

JT SMT Reflow Oven JTE-800

Conveyor speed: 300~2000mm/min
PCB Max. width: 400mm
Length of heating zone: 3121mm
Dimension: 5310X1353X1490

JT SMT Reflow Oven JTE-800

Specifications:


JT SMT Reflow Oven JTE-800

Totally meet various requirements for lead free processing.

Standard 8 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.

PLC+PID closed loop control to achieve high precise temperature control and repeatable profiles.

Dual temperature sensors and dual safety control system shall cut off the power while abnormal case occurred.

The various alarm function: Over temperature alarm, abnormal speed alarm and Board dropped alarm.

Parameters:

Model

JTE-800

Dimension

5310X1353X1490

No. of Heating Zone

Top/Bottom 8

Length of heating zone

3121mm

No. of cooling zone

2

Air exhaust requirement

10m³/minx2

Warming time

About.30 minute

Temperature control accuracy

±1.0℃

Temperature deviation on PCB

±1.5℃

PCB Max. width

400mm

Component Height

PCB Top/Bottom25mm

Conveyor direction

L→R (Option:R→L)

Conveyor type

Chain+ Mesh

Conveyor speed

300~2000mm/min

Cooling type

Forced air cooling
