Hanwha HM520 Pick and Place Machine

Hanwha HM520 Chip Mounter
Patch speed: 80,000 CPH

Hanwha HM520 Pick and Place Machine


Hanwha HM520 Pick and Place Machine

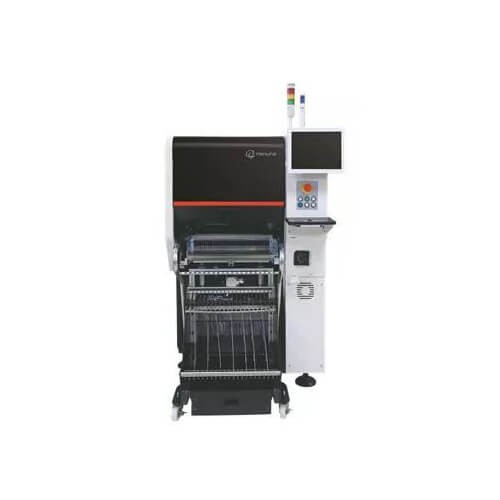

The Hanwha HM520 modular Pick and Place Machine is a high-speed Modular Chip Mounter equipped with Rotary Head.

high-performance newer flying camera placement machine that delivers world-class top speeds of 80,000 CPH .

03015Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

Hanwha HM520 Chip Mounter parameters

Number of shafts: 10 shafts * 2 cantilever

Mounting Speed: 80000CPH (Rotary Head Conditions)

Mounting accuracy: 1μm

Component Size: 03015, BGA, CSP (Ball Pitch 0.03mm)

Electrically Driven High Speed and High Accuracy.

890MM length ultra-small Chip mounter

80,000CPH(Rotary Head)

60,000 CPH (Piano Head)

LED products: 72,000 CPH (Rotary)

Automatic detection of pick and placing problem.

Automatically replenishing suction/mounting position and height deviation

Preventing LED defects caused by turning

PCB: Max (L) 750x (W) 580mm (optional)

Equipment size:2370x1440x890mm

Power AC200 / 208/220/240/380

Equipment weight:1605KG
