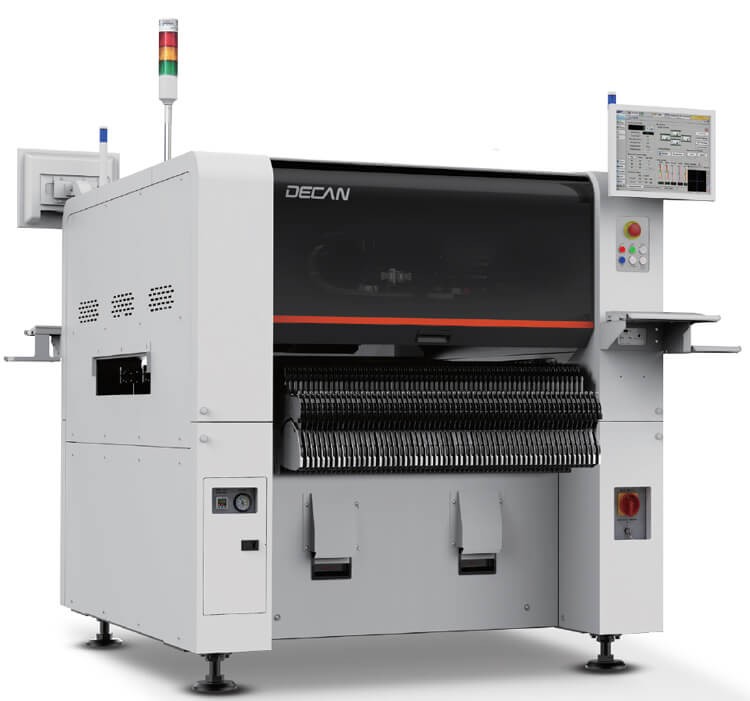

Hanwha DECAN S2 Pick and Place Machine

High Speed:92,000 CPH(HS10 head)
PCB Size : L510xW460mm
Feeder position:120ea
Weight: 1,800kg

Hanwha DECAN S2 Pick and Place Machine

Specifications:

Hanwha DECAN S2 Pick and Place Machine

Hanwha Pick and place machine DECAN S2, Samsung Pick and place machine DECAN S2, Hanwha chip mounter DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components; The DECAN S2 high-speed chip placement machine is equipped with 10 shafts per head and is suitable for dual cantilever, magnetically levitated high-performance placement machines, which can achieve the highest speed in the world's same-class products. 92,000CPH. Welcome to "Hanwha  decan s2, original Samsung high speed placement machine, Hanwha magnetic suspension pick and place machine"

Hanwha DECAN S2 Pick and Place Machine

1 Enhance the convenience of device software management

2 Built-in * optimized software in the device, which can realize simple program creation / editing

3 Provides various job information through a large LCD screen

4 Highly convenient high-precision electric feeder

5 Calibration Free & Maintenance Free Electric Feeder

6 Improved ease of operation with the Single Feeder of Reel Bank's integrated structure

7 Through the automatic arrangement of the component pick-up position between the feeders, the actual production capacity can be improved

8 SMART FEEDER with automatic material receiving

9 The industry's first automatic feeding and automatic receiving function

Manual feed preparation and receiving operation changed to automatic method, which greatly shortened the operation time

Realize zero consumption of consumables for receiving materials

Hanwha DECAN S2 Pick and Place Machine

1 Speed: 92000CPH

2 Accuracy: CHIP 28um (03015), IC 25um

3 Mountable components (mm): Chip 03015 ~ 5 axis: 12-h10 10 axis: 6-h10

Number of 4 shafts: 10 x 2 Head

5 Fly Camera FOV: 20.5mm

6 PCB size: 50 x 40 ~ 510 x 460mm

Max. 740 x 460 mm (1,200 x 460 mm)

7 material station: 120ea

8 Equipment weight: 1,800kg

9 Device size (mm): 1,430 (L) x 1,740 (D) x 1,485 (H)

10 Power: 3 phase AC 200/208/220/240/380 / 415V ± 10%;

50 / 60Hz; Max. 5.0 Kva

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
