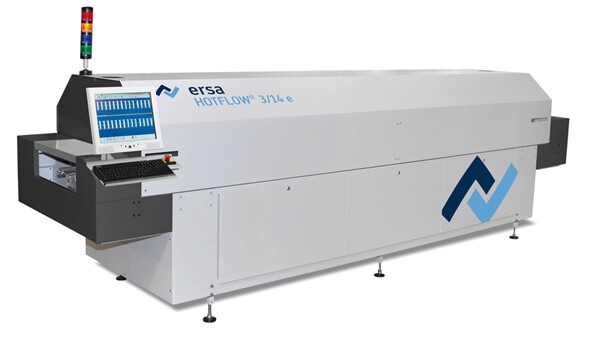

Ersa HOTFLOW 3/14e Reflow Oven

Max PCB width: 516mm
7 Heating zones
Dimensions: 4,770x1,201x1,375 mm
Weight:1,450 kg

Ersa HOTFLOW 3/14e Reflow Oven

Specifications:

Ersa HOTFLOW 3/14e Reflow Oven

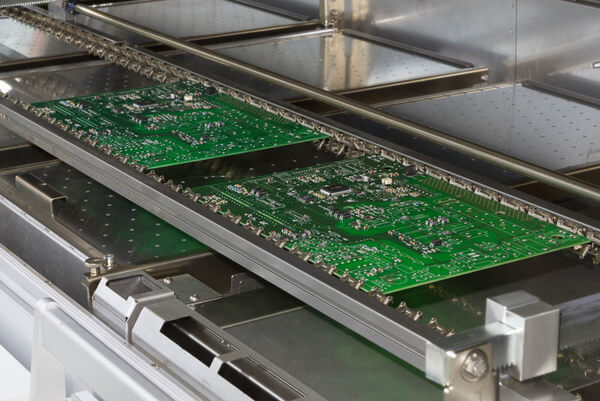

Dual track transport increases throughput

Optimized heat transfer, minimized ΔT zone

Separation

Internal cooling

Lowest energy consumption

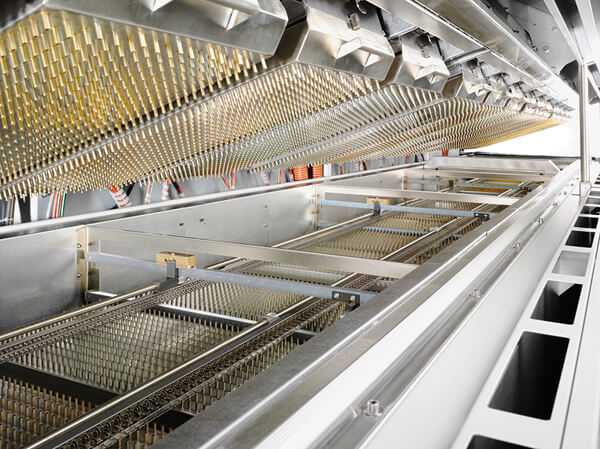

Removable heating modules top and bottom

Extreme low-mass center support

ERSASOFT Process Data Recorder

ERSASOFT – user-friendly machine control

Auto profiler for rapid offline profiling


Ersa HOTFLOW 3/14e Reflow Oven

The Ersa HOTFLOW 3/14e Reflow System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 4,770 mm

Width: 1,201 mm

Height: 1,375 mm

Weight appr. 1,450 kg

Conveyor system

Working width: 45-516 mm automatically infinitely adjustable

Clear passage height: +35/-37 mm

Center support, automatically infinitely adjustable

Conveyor speed: 20-200 cm/min

Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length

Process zone

Process length: 3,345 mm

Heated length: 2,610 mm

Cooling length: 735 mm

Heating system

Up to 14 convection heating cassettes

(Preheat zone 10 cassettes, reflow zone 4 cassettes)

Volumetric flow rate each module, adjustable up to 500 m3/h

Rated power each module: 3.3 kW

Rated power last module: 4.5 kW

Cooling

Up to 2 level cooling zone (air)

Electrical data

400 V, 3 Phase, N, Ground, 50/60 Hz

Continuous output during operation: appr. 11-14 kW

Exhaust

Extraction capacity: stack at entry of system 300 m3/h; stack at exit of system 400 m3/h, both with monitoring feature


Options:

Pin-and-chain conveyor with low-mass center support

Automatic adjustment of the conveyor width and the center support

Up to 2 tracks with center supports in the system

For single track systems, low-mass tubular supports are available

Operating in ambient atmosphere, internal cooling with room air

RPMs of fan motor are adjustable via frequency converters

Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length
