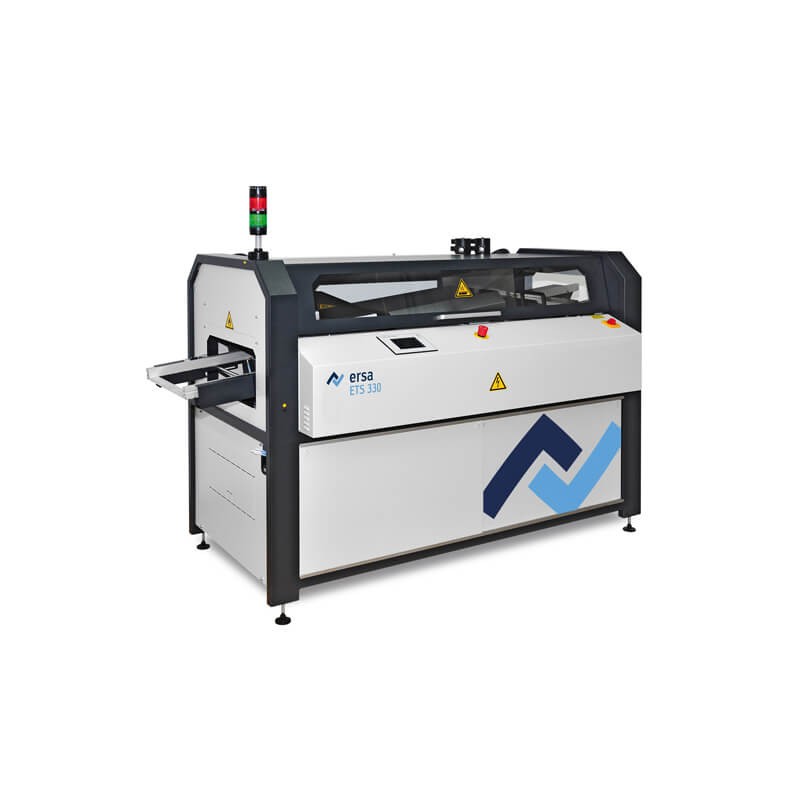

Ersa ETS 330 Mini Wave Soldering Machine

solder content is between 360 to 410 kg
Maximum working width: up to 330 mm
Dimension: 2,000 mmx890x1,400 mm

Ersa ETS 330 Mini Wave Soldering Machine

Specifications:

Ersa ETS 330 Mini Wave Soldering Machine

A compact wave soldering system for the industrial manufacture of small to medium production volumes

Inline-capable dual wave soldering systems with 330 mm maximum working width and code operation

Precise and economic flux deposition on account of a freely defined spray area

Powerful preheat with 900 mm length protected by a glass ceramic (ceran glass) cover

Additional and programmable length of stay over the preheater for assemblies requiring more heat

Ideal combination of solder nozzles for all applications

Robust conveyor system with forced guidance of the pallet

Modern controls with a graphic user interface and touch-screen

Automatic heat-up with weekly time clock

Large solder program library with up to 199 different programs

Ersa ETS 330 -Mini Wave Soldering Machine

The Ersa ETS 330 is a microprocessor controlled Wave Soldering System to process boards populated with SMD and through-hole components up to a board width of 330 mm. The ETS 330 is ideal for the use with low-solid fluxes. The ability to store 199 programs, the clear text entry of all process relevant parameters and the self-monitoring function of the system ensure a high degree of repeatability.

Dimensions

Length approx. 2,000 mm

Width approx. 890 mm

Height approx. 1,400 mm

Conveyor systems

Pallet conveyor

Maximum conveyor speed: 2,5 m/min

Maximum working width: up to 330 mm

Media supply

Compressed air

Electrical power

Exhaust

Preheating

Heat transfer via medium and short wave radiation

Length of preheat: approx. 900 mm

Solder module

Depending on the alloy used, solder content is between 360 to 410 kg
