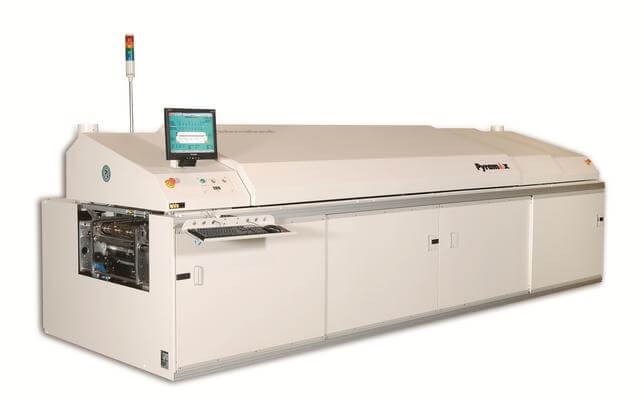

BTU Pyramax Convection Reflow Oven

Stainless steel construction
350°C Maximum temperature
Closed loop convection control
Superior cooling performance

BTU Pyramax Convection Reflow Oven

Specifications:

BTU Pyramax Convection Reflow Oven

BTU Pyrama family™ of high-throughput thermal processing systems is widely recognized as the global standard of excellence for both printed circuit board solder reflow and for semiconductor packaging.

Pyramax™ systems provide optimized lead-free processing for the ultimate in productivity and efficiency. BTU’s exclusive closed loop convection control provides precise heating and cooling, programmable heat transfer, and reduced nitrogen consumption, adding up to the lowest Cost of Ownership in the industry.

With 6, 8, 10 and new 12-zone air or nitrogen models, 350oC maximum temperature and a comprehensive menu of options, Pyramax™ systems are the industry’s most versatile performers and best value.

Closed Loop Convection

BTU’s exclusive Closed Loop Convection Control provides maximum flexibility in process control.

Side-to-side recirculation enhances temperature uniformity

Guaranteed process repeatability, system to system, site to site

Unmatched convection efficiency reduces zone temperature setpoints.

Flux Management System

BTU’s patented Flux Management System traps flux residue from the process chamber, preventing it from settling within the oven, leading to increased uptime and lower cost-of-ownership.

Easy access to filtration and trap arrangement

Multiple extraction locations maximize overall efficiency

“On the fly”maintenance eliminates downtime

Innovative Cooling System

BTU’s unique clamshell air or water-cooling design moves the cooling media away from the process chamber, where it can be easily accessed for maintenance.

Water cooling features a sliding heat exchanger assembly allowing easy access for maintenance

Closed loop cooling control provides variable cooling rates and increased process control

Lead Free Process-Guaranteed

BTU’s repeatable process control eases the transition to lead-free.

Stainless steel construction

350°C Maximum temperature

Closed loop convection control

Superior cooling performance

Standard Features

Lead Free Process-Guaranteed

350ºC Maximum Temperature

Forced Impingement Convection

Programmable Heating and Cooling Rates

Side to Side Gas Recirculation

Low Nitrogen and Power Consumption

Flexible Platform Configuration

Automatic Width Adjust

Dynamic Gas Idle

Smart Product Tracking (SMEMA)

WINCON Control Software

Electronic Over-Temperature Safety System

Options

24 in Processing Capability

400ºC Maximum Temperature

Belt and Rail Conveyors

Fine Mesh Conveyor Belts

Multiple Track Solution

Flux Management

Closed Loop Convection Control

Integrated Water Supply

Low Nitrogen Consumption Package

High Power Heaters

Center Supports

Automatic Gas Sampling

UL 508A and CE Compliant

Automated Wafer Handling

Barcode Reader

Customer Support

BTU’s quality products are backed by its Industry leading comprehensive warranty.

Lifetime on heaters and blowers

3 years system

1 year labor

To enhance uptime the Pyramax is supported by BTU’s 24-hour, 7-DayWorldwide customer support, electronic user documentation, and Parts Identification Software which allows customers to identify parts without the use of a cumbersome paper manual.
