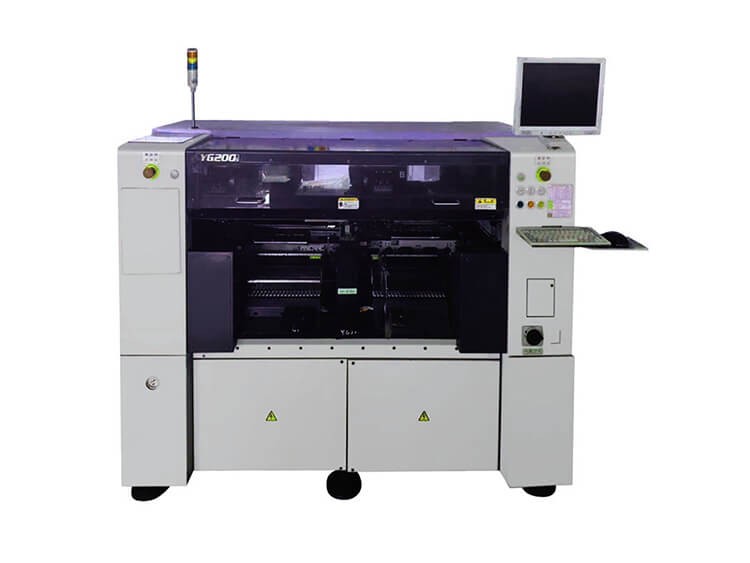

Yamaha YG200 Pick and Place Machine

Yamaha YG200 Pick and Place Machine

Specifications:

Yamaha YG200 Pick and Place Machine

Key Specifications/Special Features:

High speed chip shooter Yamaha YG200 (Model ： KGT-100)

Applicable PCB: L330×W250mm to L50×W50mm

Through-put (Optimum): 45,000CPH（0.08sec/CHIP equivalent)

Mounting accuracy: (Yamaha's standard components)

Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability（3σ）: +/-0.03mm/CHIP

Applicable components: 0402 (Metric base）to 14*mm components

Height of components which can be mounted: 6.5mm or less

Allowable height on PCB surface before transport 6.5mm or less

Number of component types: 80 types（Max, 8mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%

50/60HzAir supply source 0.55MPa or more, in clean, dry states

External dimension, 950×W1, 408（End of cover)×H1, 450mm （cover top) L1, 950×W1, 608

（End of guide for feeder carriage)×H1, 450mm （cover top)

Weight approx. 2080kg

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments ,  JUKI products,  JUKI Pick and Place Machine Machine,  JUKI SMT Stencil Printer,  JUKI Assembly Line,  JUKI SMT Reflow Oven;  JUKI SMT Inspection Machine;  JUKI SMT Spare Parts;  SMT Equipment;  JUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: tommy@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
